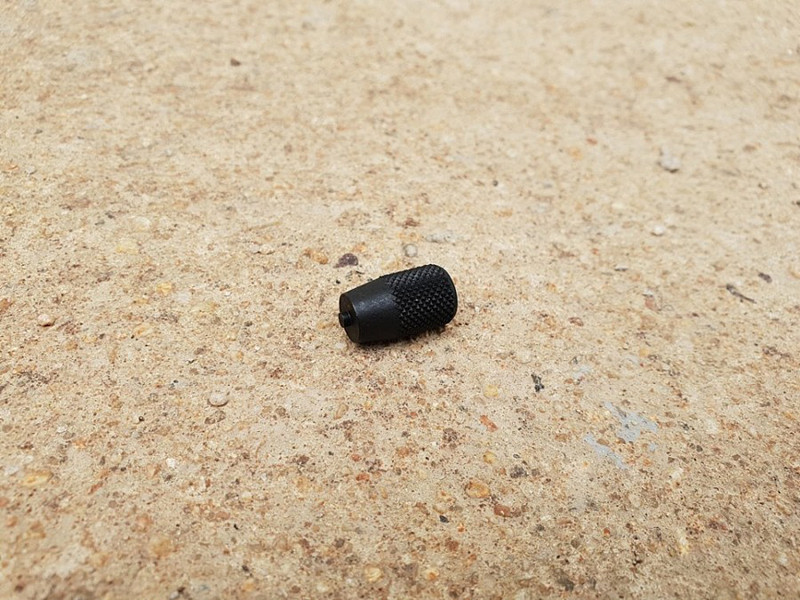

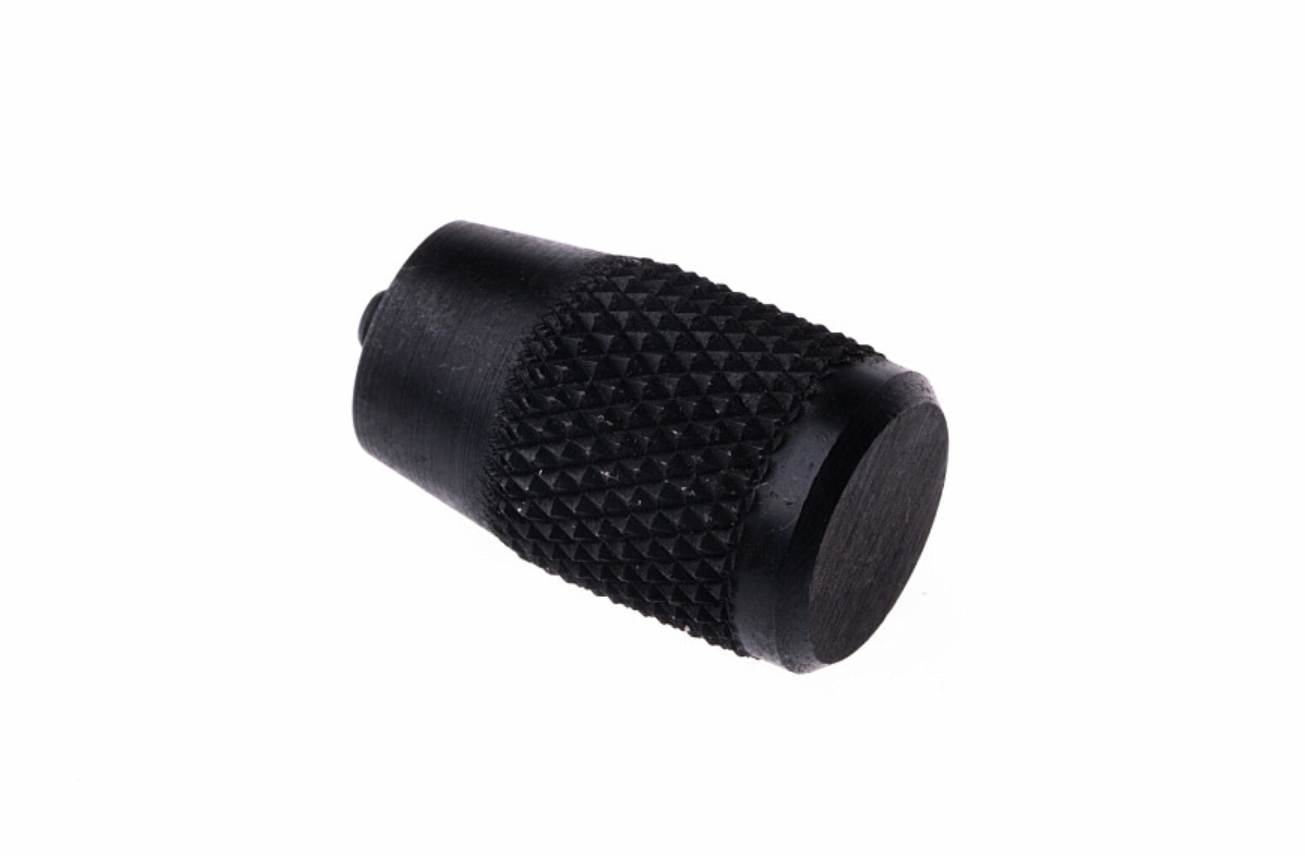

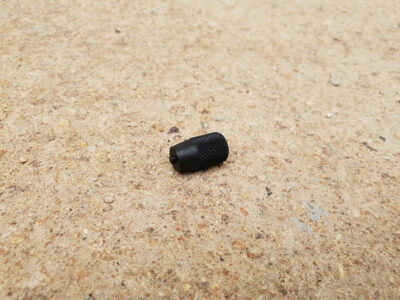

RetroArms Bearing Installation Tool

RetroArms Bearing Installation Tool
When installing bearings into a gearbox, it is important that the force used to seat them is applied to the outer bearing ring. An incorrect procedure can damage the bearing or the bearing seat in the gearbox. The RetroArms tool makes it easier to seat the bearing correctly and allows for more precise alignment with the bearing seat. It is therefore a practical aid for servicing and building AEG gearboxes. For installation, the bearings need to be carefully tapped into the gearbox. For additional securing, a suitable threadlocker such as Loctite 243 or a similar product can be used, but be careful not to allow the adhesive to get inside the bearing under any circumstances.
Key Features

Safe Bearing Installation
The tool helps during bearing installation by directing force onto the outer ring, avoiding unnecessary stress on its internal components.

Bearing Protection
The correct installation method helps reduce the risk of bearing damage when seating it into the gearbox.

More Precise Installation
The tool makes it easier to align the bearing with the axis of the bearing seat before final installation.

For Gearbox Servicing
A practical aid for technicians and experienced players who assemble and modify AEG gearboxes themselves.

Practical Workshop Tool
Makes bearing replacement or installation easier and helps prevent damage to more expensive components caused by improper installation.

Technical Specifications

Type: Bearing installation tool
Purpose: Bearing installation into gearboxes
Use: Servicing and assembly of AEG gearboxes

Package Contents

1× RetroArms Bearing Installation Tool
