AirsoftParts Cylinder Head CLASSIC

🛒 Produkt na zamówienie

Czas realizacji: 7-10 dni roboczych

Ograniczone czasowo kody zniżkowe wynagrodzą Ci czekanie ;)

lato5 przy zamówieniu <99zł

lato10przy zamówieniu +100zł

lato12przy zamówieniu +2000zł

83,99 zł

Na stanie

Aktualna cena najniższa od 30 dni - szczęściarz ;)
SKU: OD-A-ASPARTS017 Kategorie: , ,
Załóż konto - kupując ten produkt zyskasz 83,99 punktów.
Opis

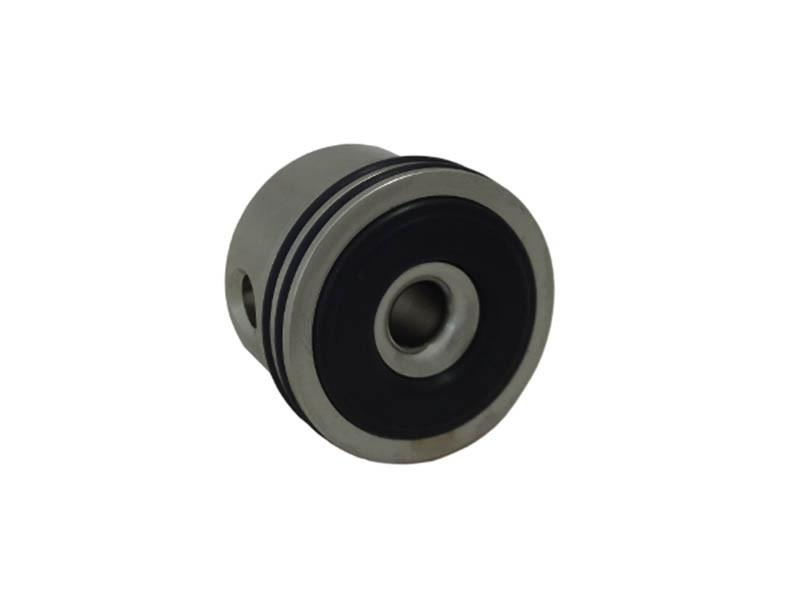

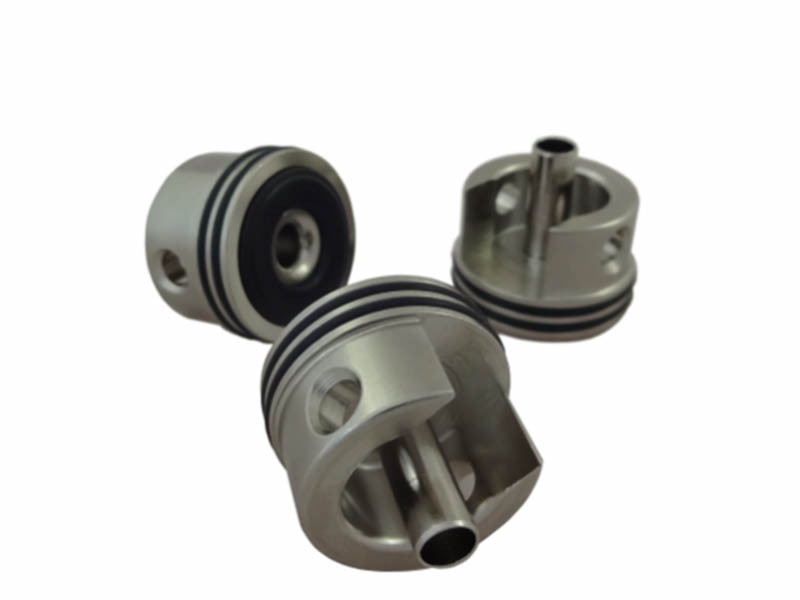

AirsoftParts CLASSIC Cylinder Head With Double Seal
This expert product description was prepared by the ANAREUS.cz expert team. All rights to this unique content are tied to the anareus.cz domain.AirsoftParts CLASSIC cylinder head is a CNC-machined component for AEG air seal systems made from EN AW 6012 T6 duralumin. It uses two O-rings of different diameters to seal the space between the head and cylinder. The first is slightly smaller to make inserting the head into the cylinder easier, while the second has a larger diameter and provides the main seal. The shaped impact ring with a hardness of 70 ShA is secured using mechanical locks and adhesive. Its stepped profile distributes contact with the piston head and, according to the manufacturer’s design, reduces unwanted stress on the piston head during impact. The internal transition is rounded for smoother flow of compressed air towards the nozzle. The duralumin body features an electroless nickel-plated finish that creates a uniform, smooth surface with high wear and corrosion resistance. According to the manufacturer, the surface hardness after plating reaches 660–850 HV (58–63 HRC), while the low-friction surface promotes smooth nozzle movement. The head weighs 11.3 g, is designed for V2 and V3 gearboxes, and the maximum recommended spring is M150. Made in the Czech Republic.
Key Features

Double Seal With O-Rings
The two O-rings have different functions: the smaller one makes inserting the head into the cylinder easier, while the larger one provides the main seal between the cylinder head and cylinder.

Shaped 70 ShA Impact Pad
The stepped impact ring with a hardness of 70 ShA helps cushion and distribute the impact of the piston head. It is secured to the head body using mechanical locks and adhesive.

Rounded Transition for Airflow
The internal section of the head uses a rounded transition towards the outlet, promoting smooth flow of compressed air from the cylinder into the nozzle.

Electroless Nickel-Plated Finish
Electroless nickel p..
