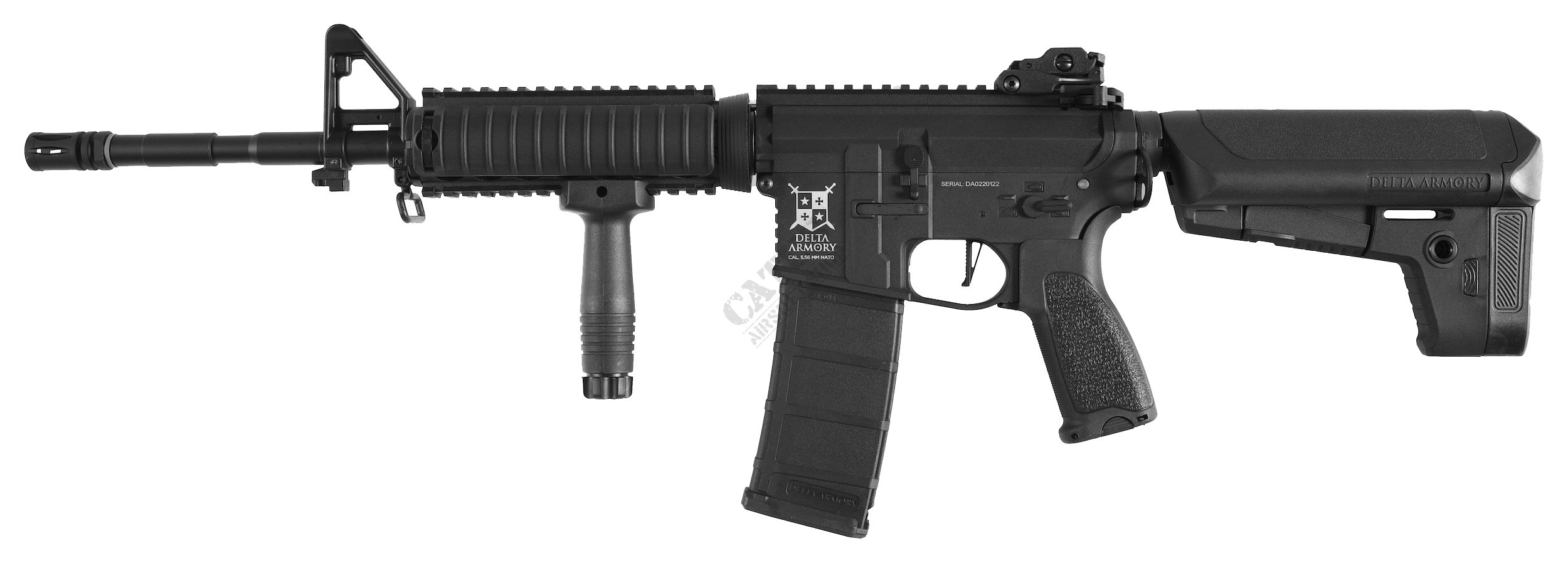

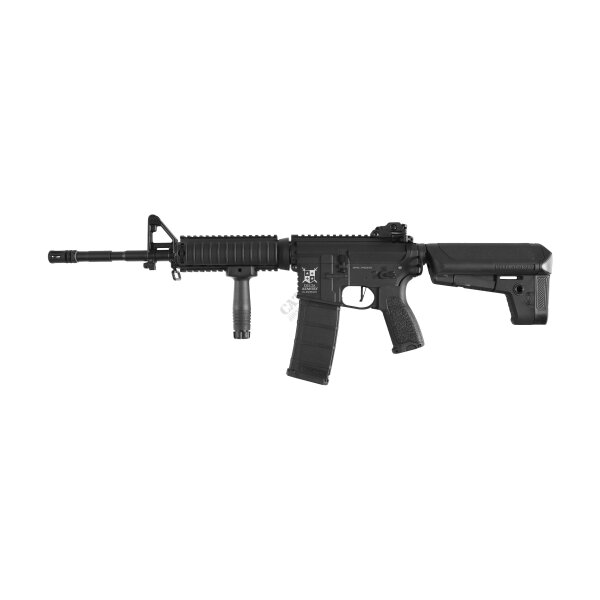

Delta Armory M4 / AR15 RIS CHARLIE – Black

Technical Specifications

• Weapon Type: AEG (Electric)
• Length: 800–890 mm
• Inner Barrel Length: 380 mm
• Weight: 2550 g
• Muzzle Velocity: Approx. 115 m/s (With 0.20 g BB)
• Gearbox: V2 (TM Standard)
• Hop-Up: Yes, Adjustable (Rotary)
• Fire Modes: Semi-Auto, Full-Auto
• Bearings: 7 mm Plain Bearings
• Piston: SHS Reinforced (14 Steel Teeth)
• Barrel Thread: 14 mm CCW
• Receiver Material: ABS Polymer
• Handguard: RIS (Polymer)
• Variant: CHARLIE
• Quick Spring Change: Yes (QRS Gen2)
• Motor: Standard Long-Type
• Magazine Capacity: 120 BBs
• Recommended Battery: Li-Pol / Li-Ion 7.4 V (Not Included)
• Connector Type: Mini Tamiya

Package Contents

• Delta Armory M4 / AR15 RIS CHARLIE AEG Rifle
• DMAG Mid-Cap Magazine (120 BBs)
• RIS Rail Covers (2 pcs)

Warning

• We recommend using a 7.4 V Li-Pol battery for optimal performance and service life.
• Regularly clean the barrel and maintain the hop-up unit.
• Designed for airsoft use only. Always wear eye protection.
• When using an 11.1 V battery, installation of a MOSFET or ETU unit is required.
• Some manufacturers’ springs are significantly overrated (for example, an SHS M120 spring may perform closer to an M130–M140). Use quality M120 springs to avoid possible gearbox damage caused by springs that exceed their stated rating.
• When installing a progressive spring, ensure the tighter-wound end is positioned on the spring guide facing outward from the gearbox.
• Neve..
