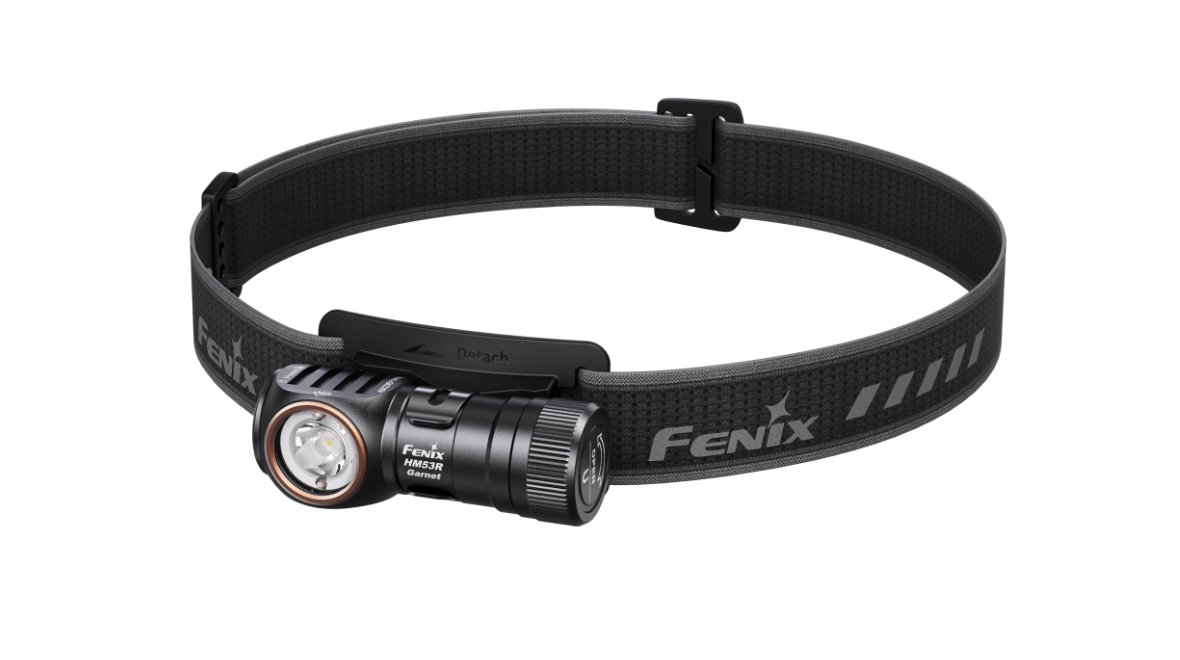

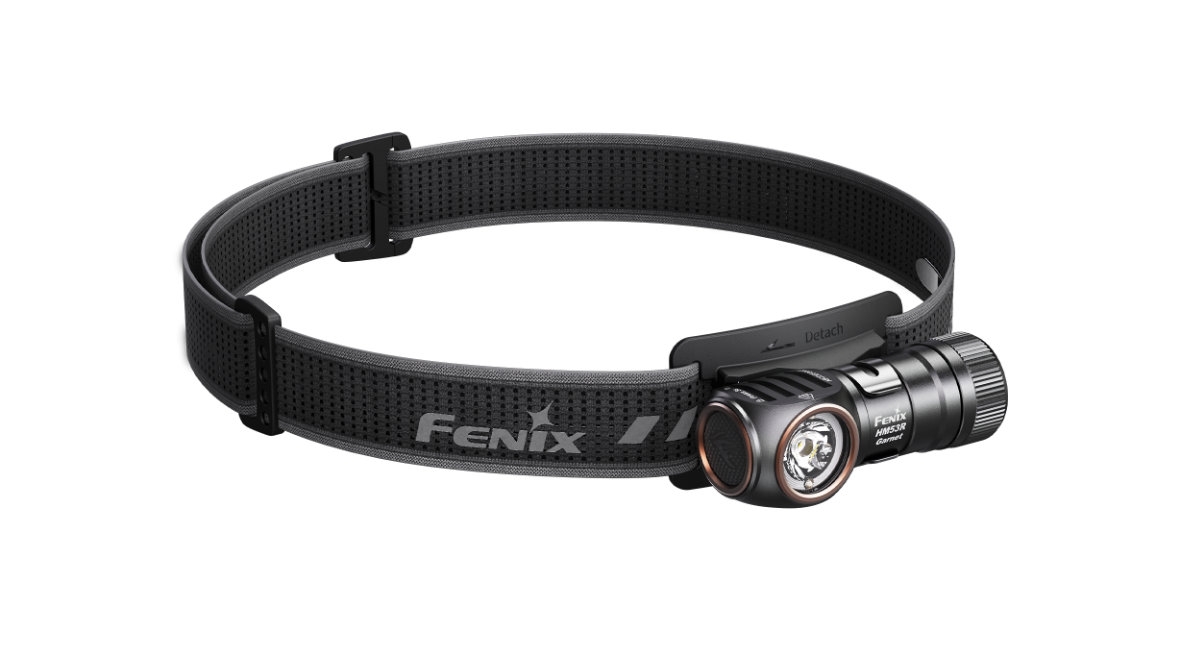

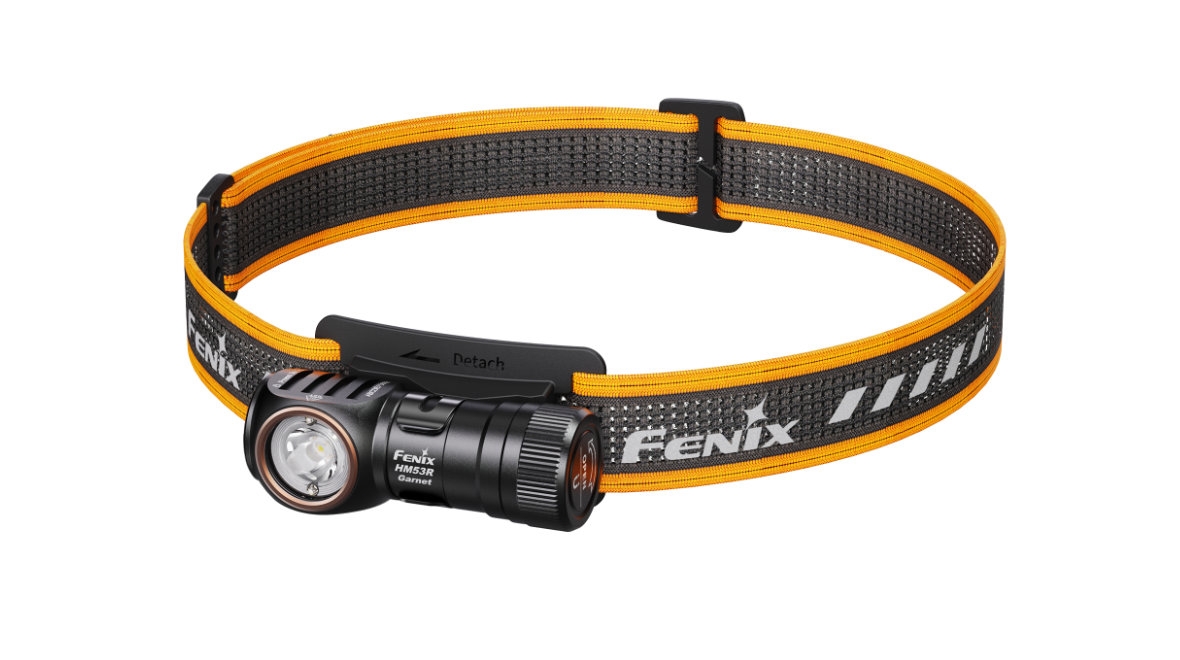

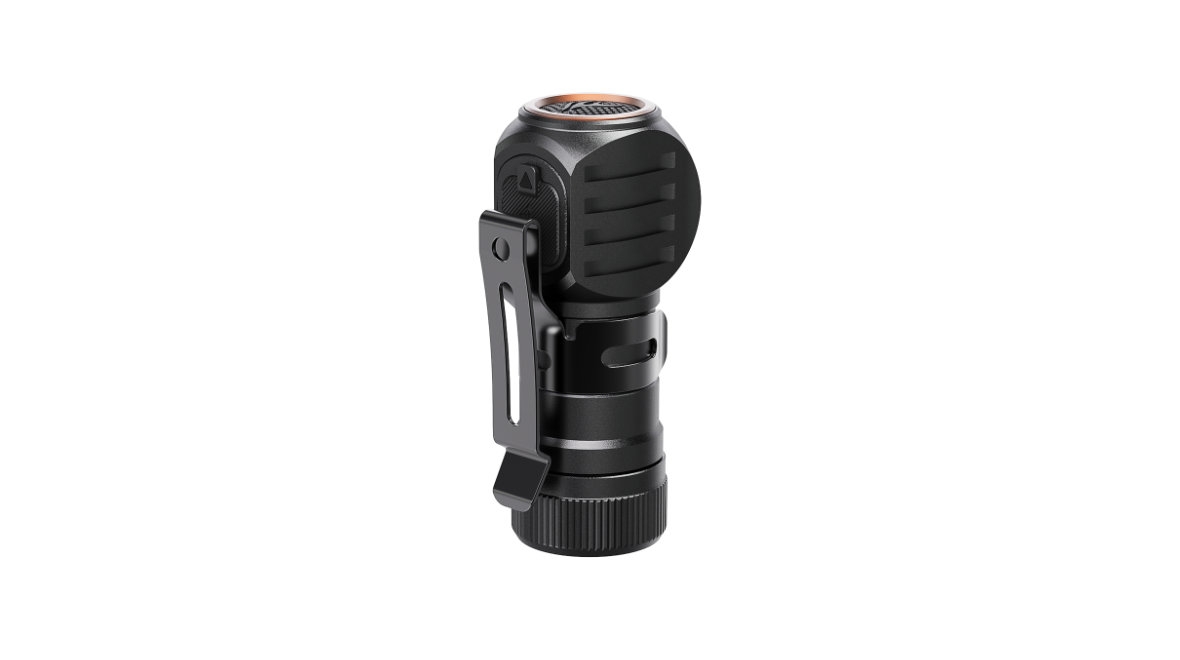

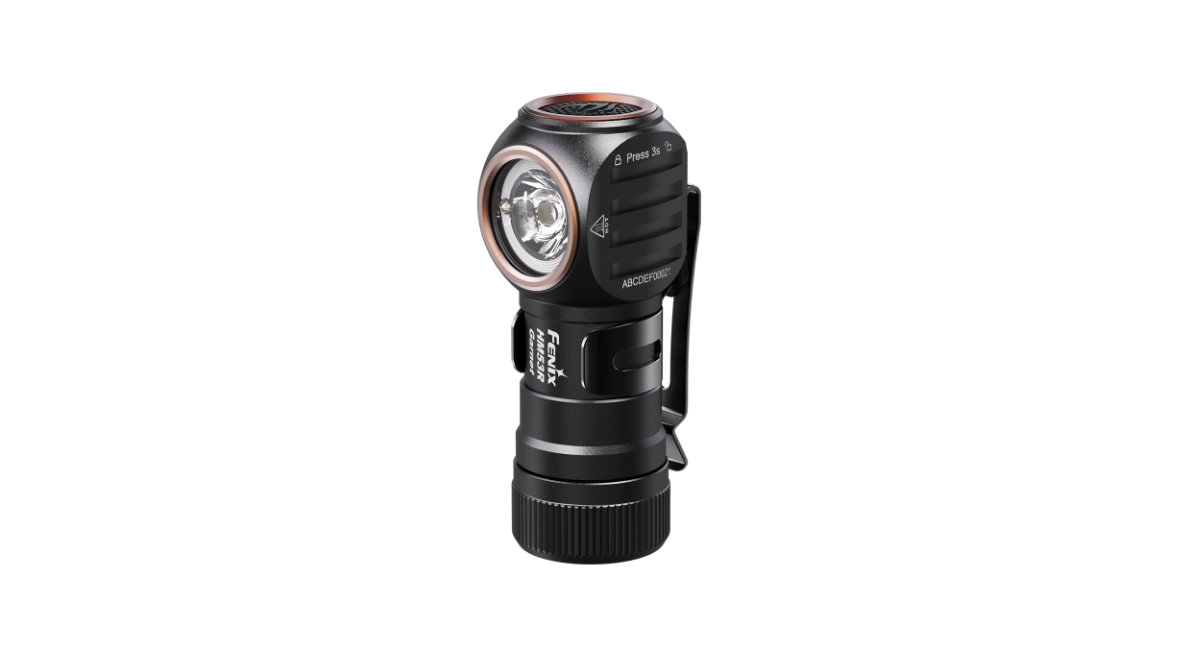

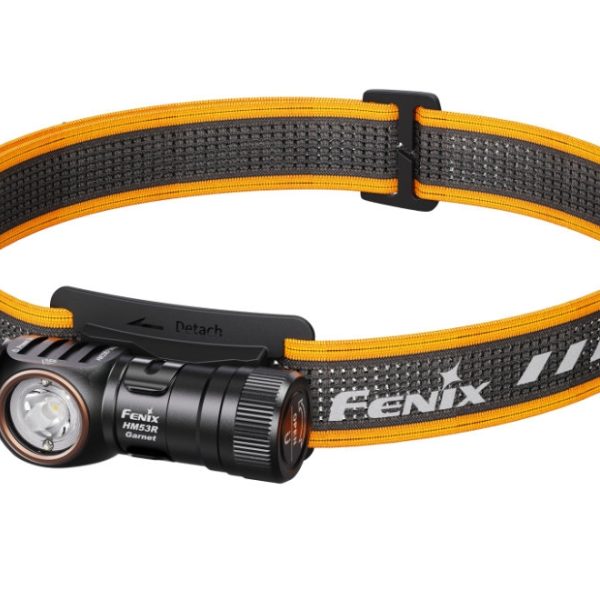

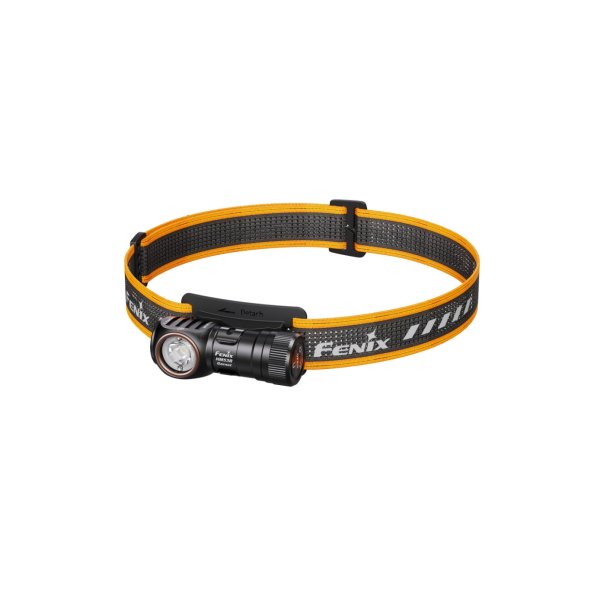

FENIX HM53R Garnet Rechargeable Headlamp – Grey / Orange

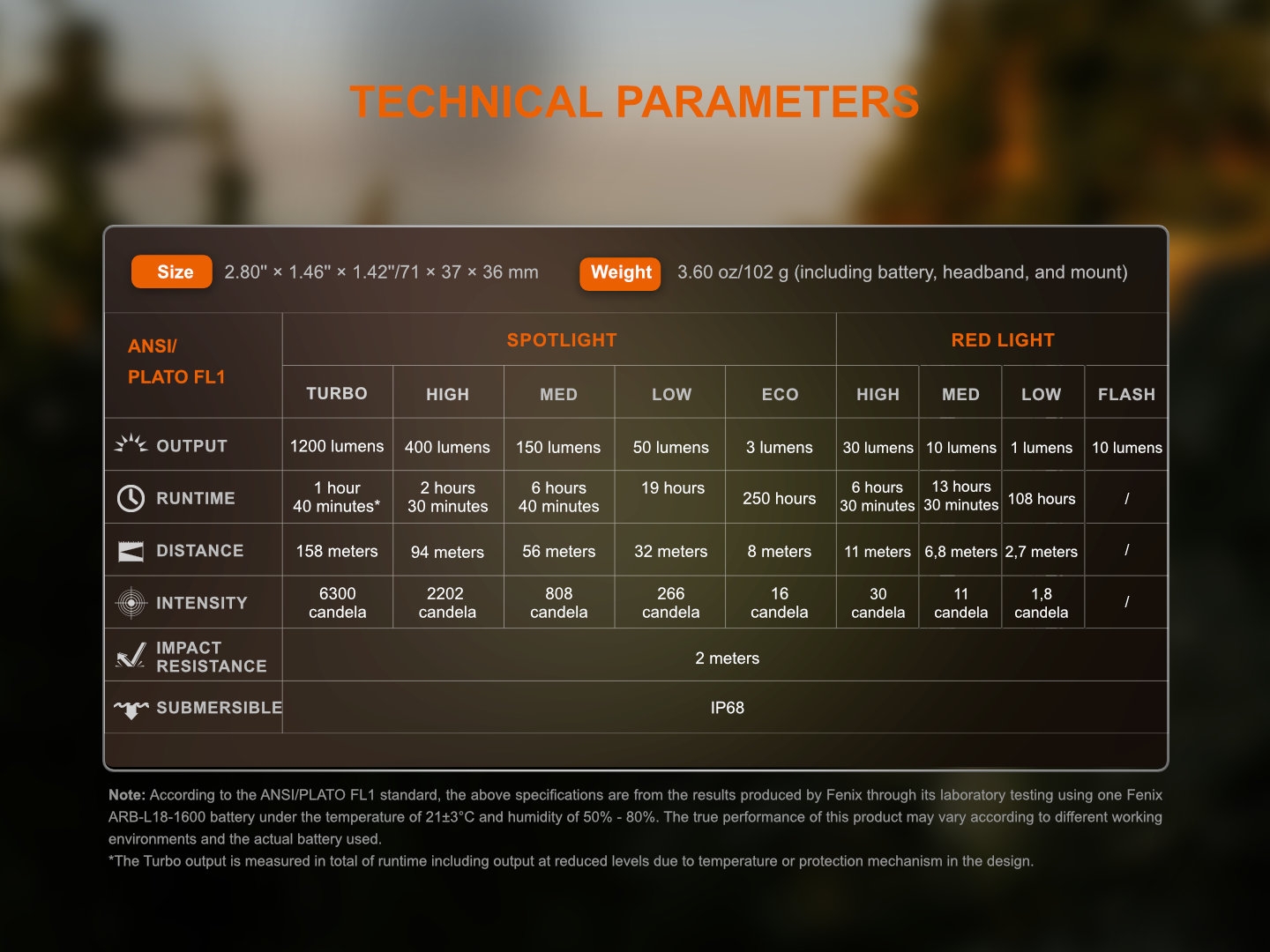

Technical specifications

• Output: 1200 lm
• Beam distance: 158 m
• Max runtime: 250 h
• Power source: 1× 18350 (CR123A can be used in emergency with limited output and no charging)
• Modes: 9 (5 white light modes, 4 red light modes including flashing)
• Light color: Neutral white (4500 K), red
• Waterproof rating: IP68
• Weight: 102 g
• Material: Aerospace aluminum A6061-T6

User instructions

1. Before first use, remove the insulation tab from the battery.
2. Hold the button to turn on white light, double-click for red light.
3. Short presses switch between modes.
4. Hold the button to turn the headlamp off.
5. For charging, connect a USB-C cable and monitor the LED indicator.
6. To lock, hold the button for 3 seconds.

Package contents

• 1 × Fenix HM53R Garnet headlamp
• 1 × 18350 battery (1600 mAh)
• 1 × USB-C cable
• 1 × spare O-ring
• 1 × headband

Warning

• Do not shine directly into eyes.
• Keep out of reach of children.
• Do not attempt to charge CR123A or RCR123A primary batteries.
• Loosen the tailcap or remove the battery for storage.
• Regularly inspect and lubricate O-rings.
