Gens ACE iCheck B36 Smart RC Battery Checker

Technical specifications

• Manufacturer: Gens ACE / Acepow Electronics Co. Ltd
• Model: iCheck B36
• Type: Multifunctional smart battery tester and balancer
• Supported battery types: LiHV / Li-Po / LiFe / Li-Ion
• Supported configuration: 1–8S
• Operating modes: Balance discharge / USB power output
• G-Tech Smart: Yes
• Balancing current: 100 mA / cell
• Maximum balancing discharge power: 2 W
• Cell balancing accuracy: a lt; 0.01 V
• USB-C output: PD up to 30 W
• USB-A output: QC up to 22.5 W
• Maximum USB output current: 3 A
• USB-C PD support: PPS / PD3.0 / PD2.0
• Supported PD2.0 / PD3.0 voltages: 5 V / 9 V / 12 V / 15 V / 20 V
• Maximum PD power: 30 W
• USB-A support: QC2.0 / QC3.0
• Supported QC voltages: 5 V / 9 V / 12 V
• Maximum QC power: 22.5 W

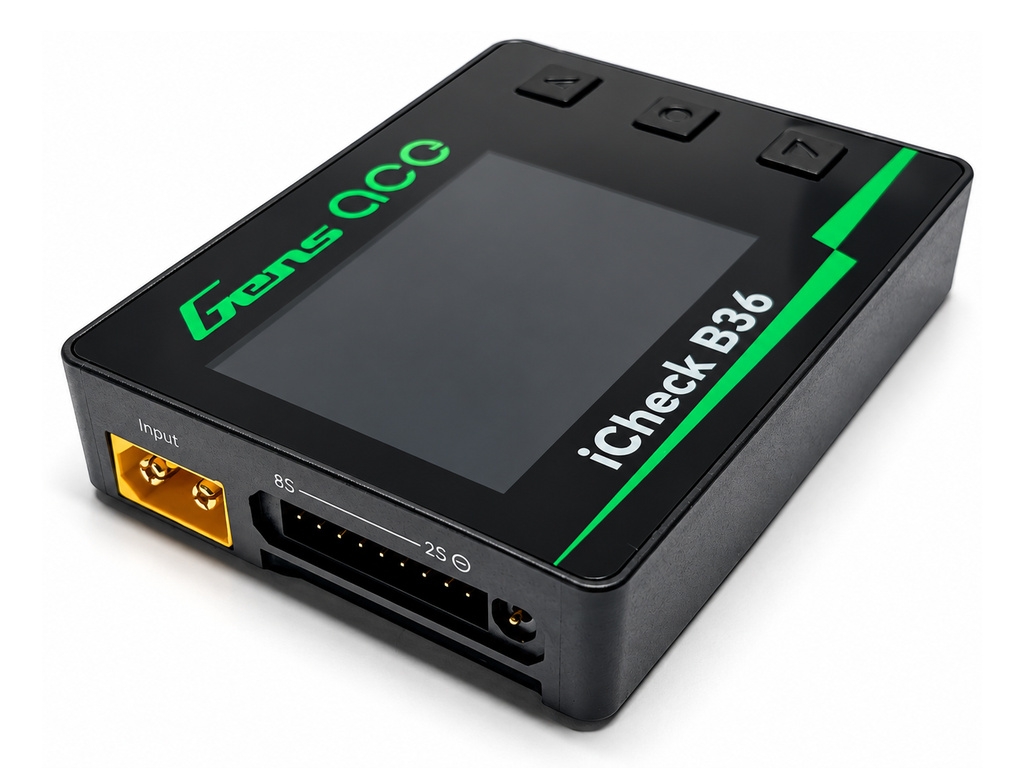

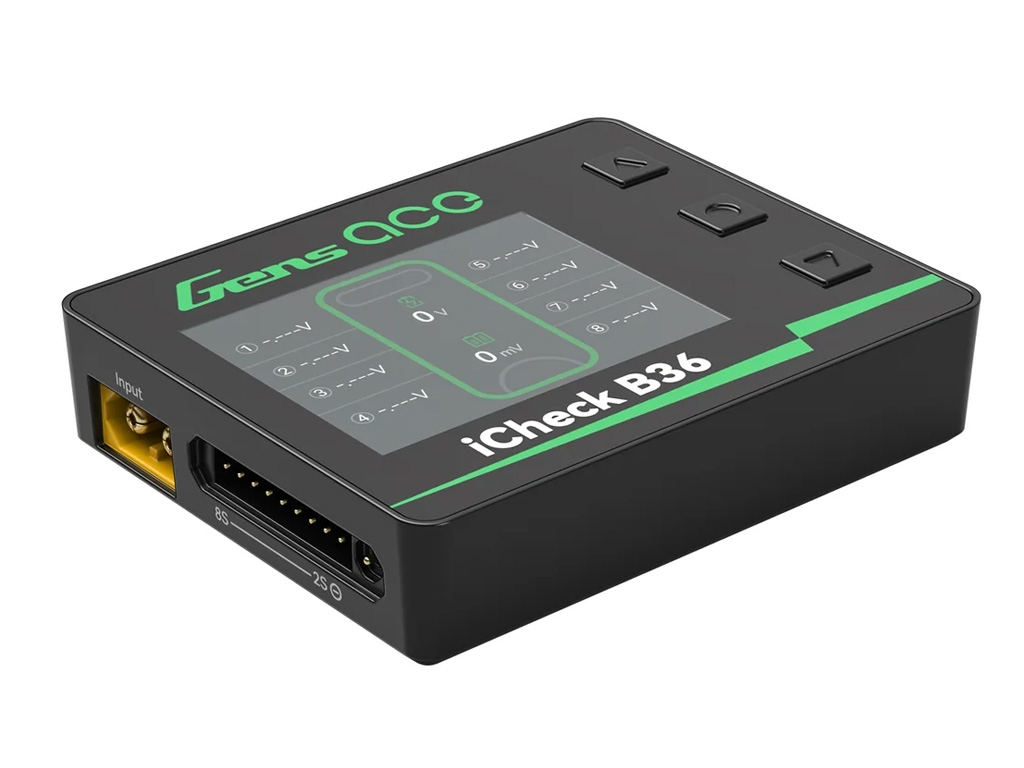

• Input interfaces: XT60 plus G-Tech balance port

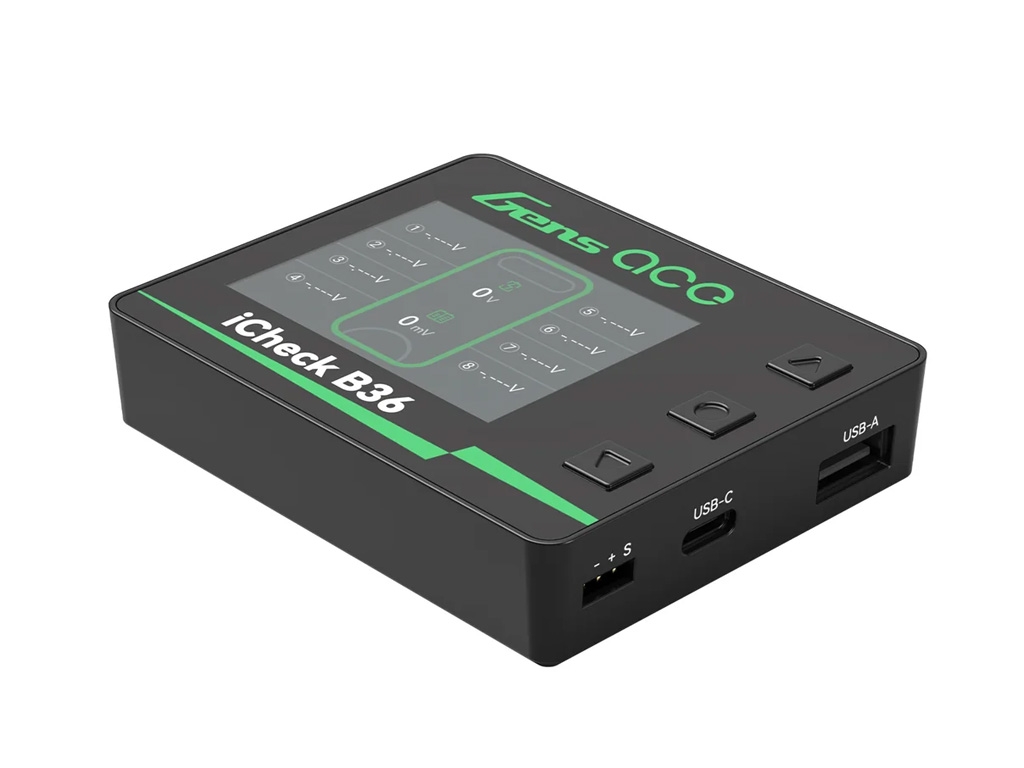

• Output interfaces: USB-A plus USB-C with PD3.0

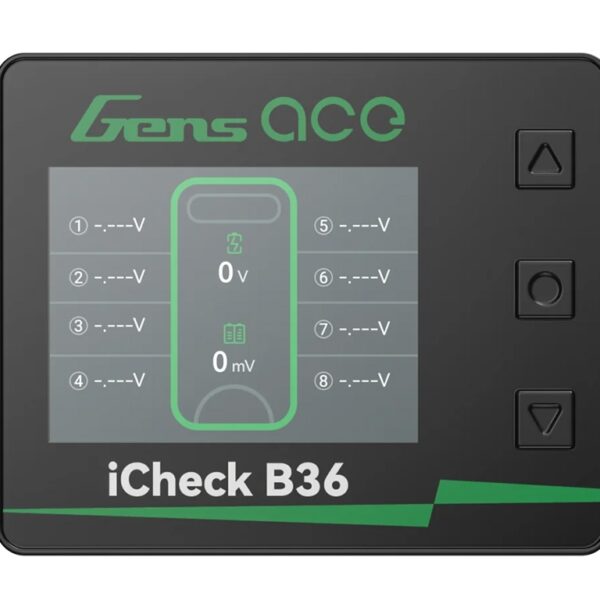

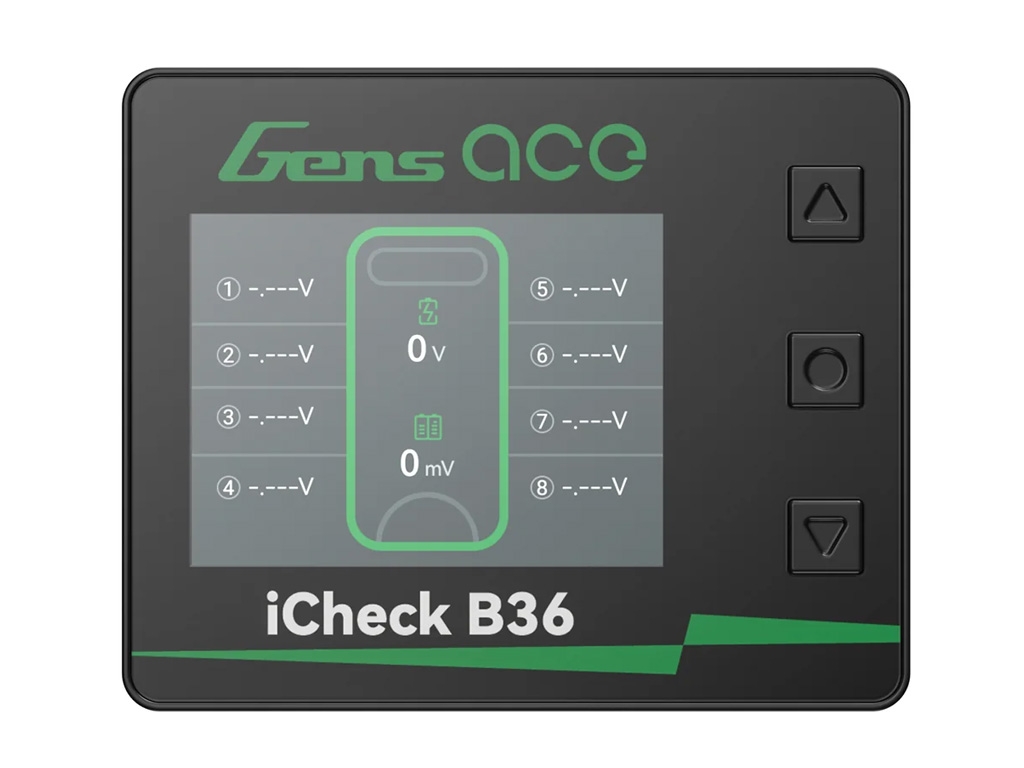

• Display: 2.4″ IPS
• Display diagonal: approximately 6.1 cm

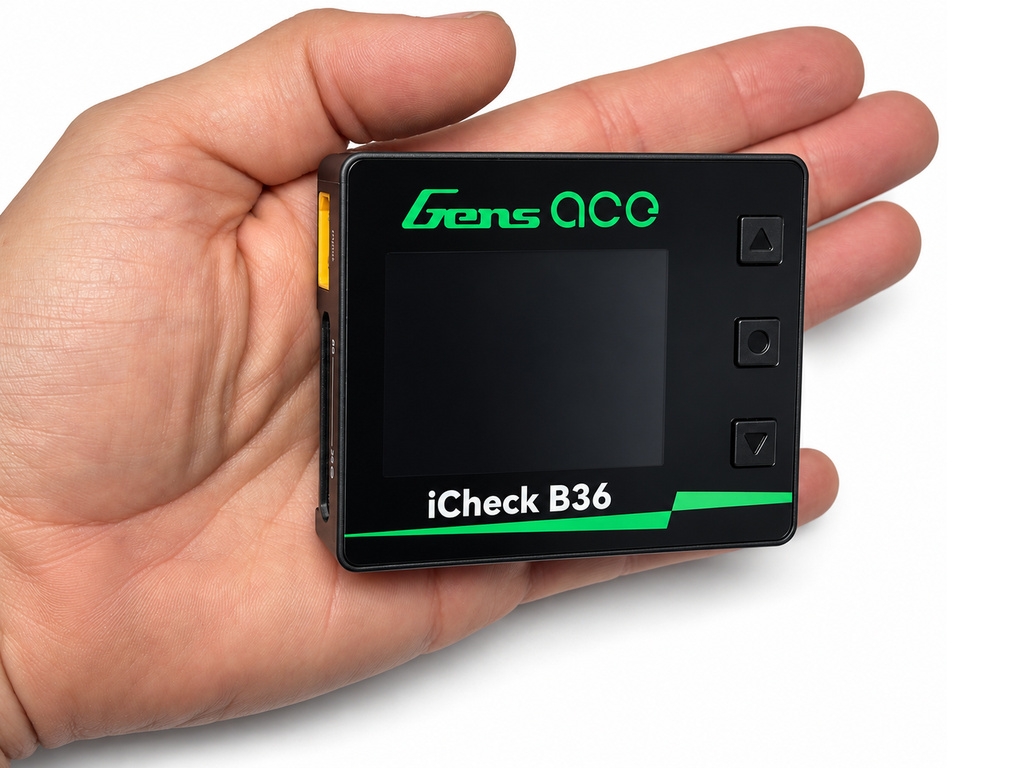

• Dimensions: 82 × 67 × 19 mm
• Weight: 75 g
• Additional functions: RC servo motor adjustment, firmware update via USB

Firmware update: Video guide for downloading and installing the latest firmware

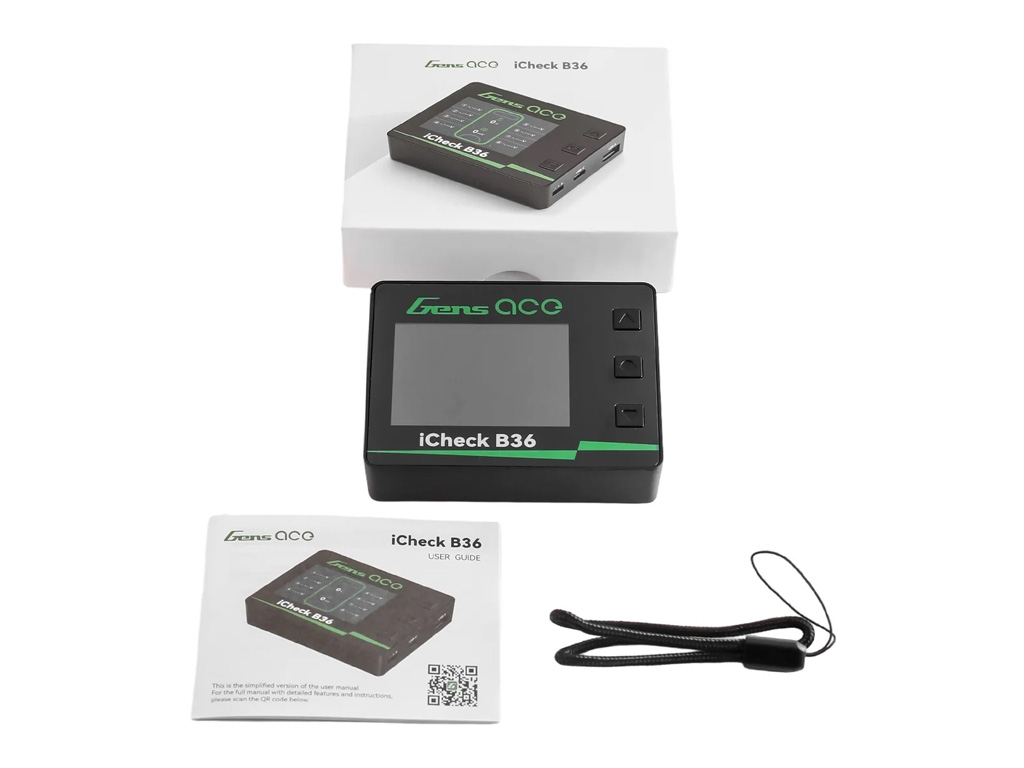

Package contents

• Gens ACE iCheck B36 multifunctional battery voltage meter
• Wrist safety lanyard
