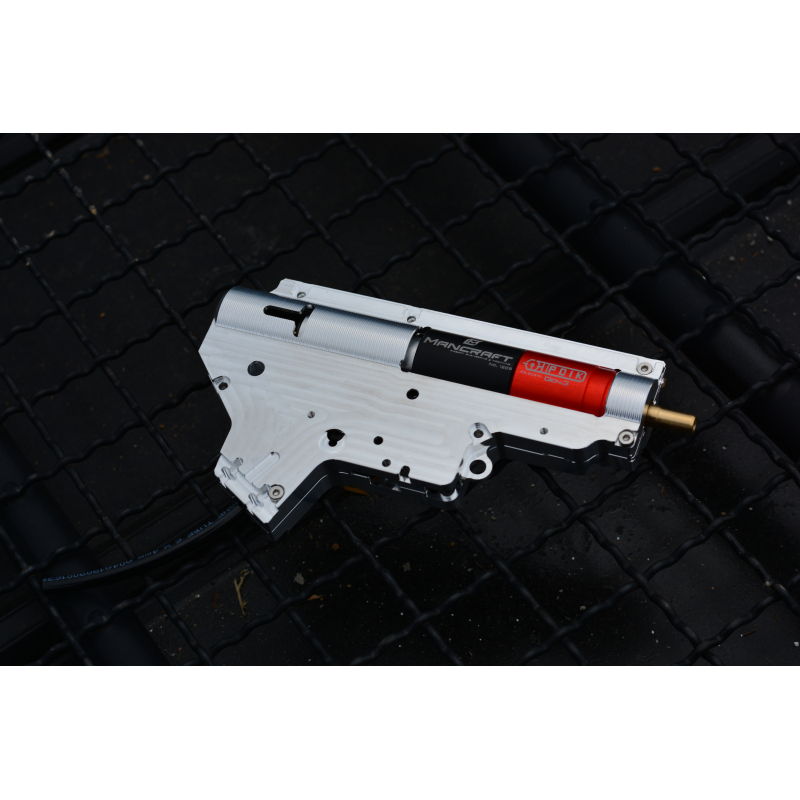

MANCRAFT PDiK HPA Conversion Kit for AEG V2 Gen3 (6 mm) – CNC Gearbox

Technical Specifications

• System Type: Pneumatic Drop-In Kit (PDiK)
• Firing Mode: Semi-auto only
• Compatibility: Rifles with AEG V2 gearbox
• Nozzle Length: 21.4 mm (can be swapped for standard AEG nozzle)
• Gearbox Material: CNC 7075 T652 aluminum
• Operating Pressure: 7–16 bar (100–230 PSI)

Approximate Muzzle Velocity (with 550 mm inner barrel a 0.20g BBs)

• 8 bar – 150 m/s (492 FPS)
• 10 bar – 165 m/s (541 FPS)
• 12 bar – 182 m/s (597 FPS)
• 16 bar – 203 m/s (666 FPS)
• 18 bar – 213 m/s (699 FPS)

Package Contents

• PDiK V2 Gen3 HPA Kit
• CNC V2 Gearbox (modified)
• 6mm air hose (1.2 m)

Warning

• Some guns may require minor shell modification.
• Gearbox is not complete – trigger, trigger stop, and selector plate must be installed.
• Use a proper pressure regulator (e.g., Mancraft MMR or EPeS MaxFlow) and hose adapter.
• QD fitting is not included – must be purchased separately.
• System uses 6mm hose – match your fittings accordingly.
