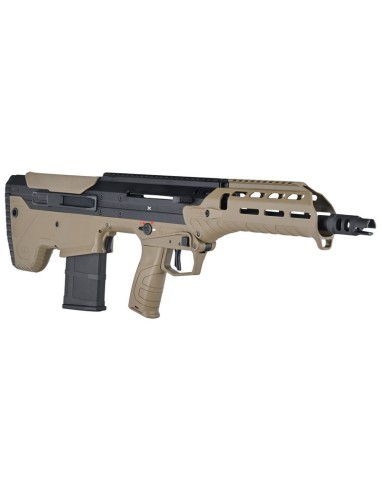

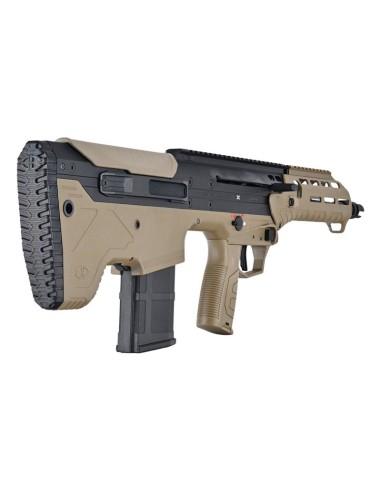

Silverback MDR-X V3 AEG – FDE / Black

The Silverback MDR-X is the airsoft licensed version of its real steel counterpart manufactured by Desert Tech LLC.

The new MDR-X V3, provides a lot of changements and adjustements to fix the defects of first versions.
We find a new ETU developed in cooperation with T238,a high-quality, custom-made gearbox, a new spring guide and a new piston head.
The M-Lok rails on the hand guard allow you to add accessories like lamp, lasers etc.. The same goes for the upper picatinny rail which allows you to add a red-dot or a rifle scope.
Because of its Bullpup architecture, this replica maintains its compact identity while being adaptable and simple to use in open field or CQB situations.

Realistic construction and assembly

• Made under exclusive license from Desert Tech LLC
• Fully engraved markings with unique serial number.
• 6000 series aluminium receiver/outer barrel and muzzle brake.
• PA6 Nylon, fiberglass reinforced stock, grip and handguard, synthetic rubber buttpad.
• MLOK handguard, with 3 slots at 3, 6 and 9 o’clock.
• 2 steel QD attachments at the rear of the stock.
• Ambidextrous fire selector and 3 points magazine release.
• Swappable realistic ejection panels.
• Realistic motion ambidextrous cocking lever.

High quality Gearbox

• Designed to operate on 11.1V Li-Po batteries (possibility to run on 7.4V)
• Electronic trigger, CPU motor control, gear cycle and fire selector position detection by Hall Effect sensor.
• CNC aluminium wide bore cylinder (26mm diameter, +19% wider than standard AEG), including a spring quick change design.
• Useful volume 22.5 cc ( with stock ventilated 75% cylinder)
• CNC aluminium cylinder head, NBR piston damper, stainless steel nozzle.
• CNC aluminium ventilated piston head, FKM o-ring, POM glider ring.
• CNC stainless steel & aluminium spring guide, equipped with a thrust bearing. 3 lugs design ensuring a better axial alignment.
• “Tappet plate-less” construction.
• CNC aluminium piston body, hardened MIM steel 16 teeth rack.
• 18:1 torque up gear set, hardened MIM steel.
• ADC 12 aluminium gearbox carter, 10mm ball bearing.
• Neodymium high-torque motor 19000RPM (11.1V), short axis.

Efficient hop-up design

• Hop-up unit made of durable Polycarbonate material.
• TCD, rotary ring design.
• Incremental “click” adjustments using 2 ball plungers, 36 positions ranging from 0 up to 750 µm with the low nub (installed, for standard bbs configuration), and from 500 up to 1250 µm with the high nub (provided, for heavy bbs configuration).
• 420 mm brass inner barrel. 6.05 mm bore, chemical passivation surface treatment, AEG hop-up cut.

What type of battery is suitable for this replica? :

• The battery is housed in the compartment at the top of the replica at the back (see photo)
• The batteries we recommend are linked below, they are AK type, simple stick with T-dean connectors

The MDRX is coming with:

• 78 rounds AR10/SR25 type magazine (G&P / A&K Type)
• x1 60 Newton Spring
• x1 100 Newton Spring
• A pin puncher for easy battery change and disassembly
• 2 keys (Allen 2.5mm, Allen 5mm)
• One high nub for the hop up unit, to lift bbs from 0.32 grams and above (low nub installed out of the box).
• One PCB jumper, used to switch from 11.1V to 7.4V batteries or deactivate battery protection (***)

(***) Depending on your battery type and wear, outside temperature and spring stiffness, it might be necessary  to deactivate the battery protection for the MDRX replica to cycle properly)
