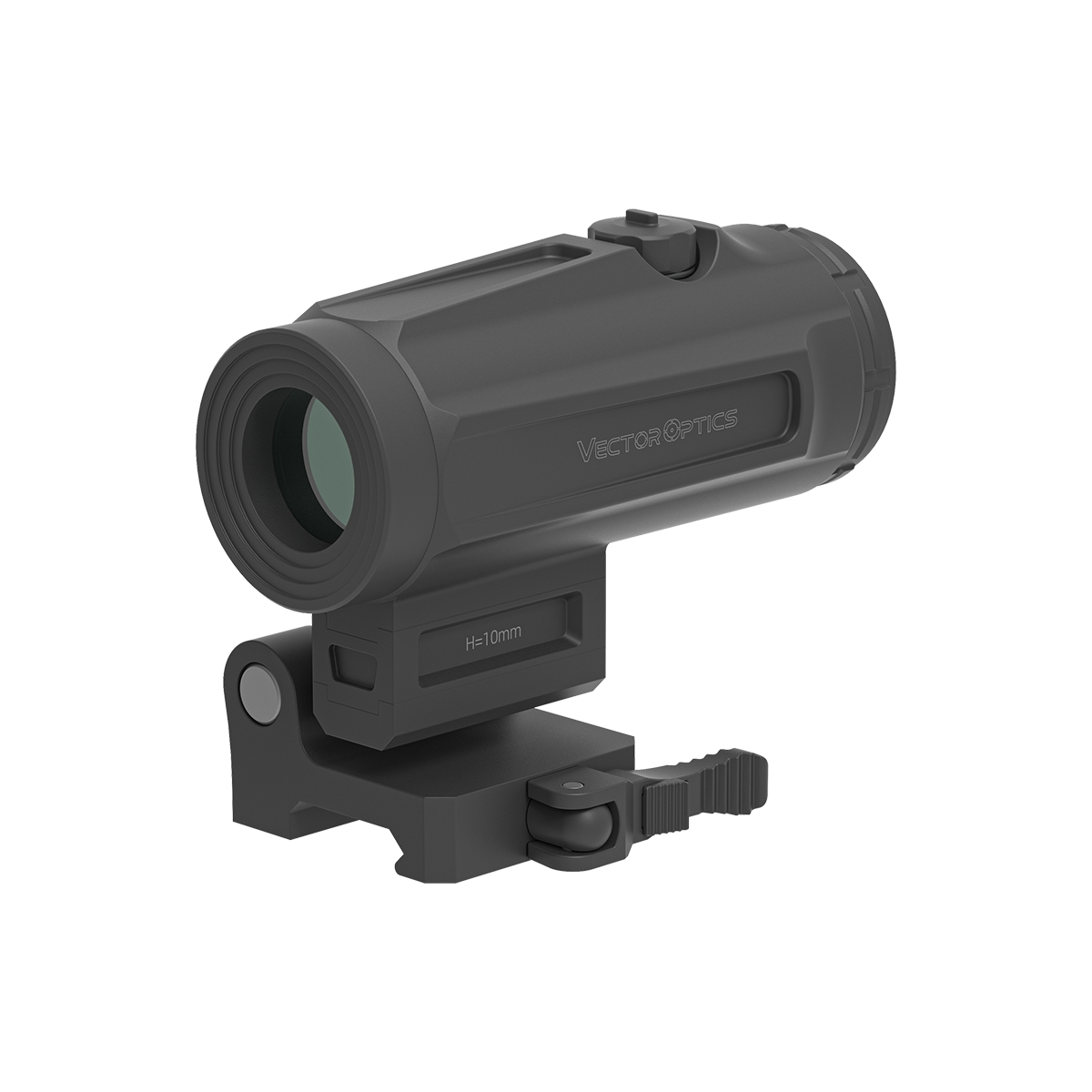

VO MAVERICK 5×22 FTS Magnifier

Technical specifications

• Manufacturer: Vector Optics
• Model: MAVERICK 5×22 FTS Magnifier
• Product code: SCMF-36
• Type: Magnifier for red dot sights
• Magnification: 5×
• Objective lens diameter: 22 mm / 0.8″
• Lens coating: FMC (Fully Multi-Coated)
• Eye relief: 70–80 mm / 2.76–3.15″
• Angular field of view: 4°
• Elevation and windage adjustment range: ≥90 MOA
• Mount type: Flip-to-Side FTS quick-detach RIS mount
• Centre height: 40 mm / 1.57″
• Riser adapter: 10 mm Riser
• Water resistance: IP56
• Shock resistance: 750 G
• Material: 6061-T6 aluminium alloy
• Body protection: Rubber coating
• Length: 97 mm / 3.81″
• Weight: 347 g
• Finish: Matt black
• Colour: Black

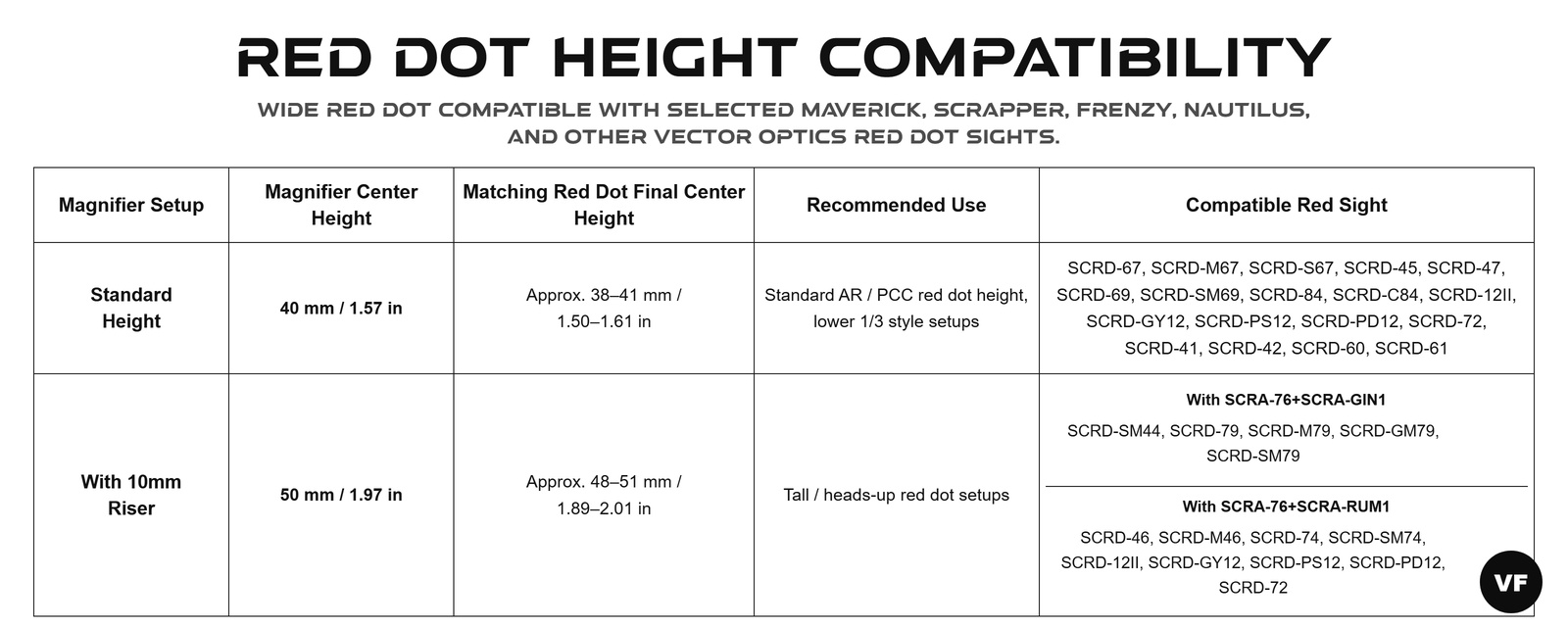

ANAREUS tip: The magnifier does not replace the red dot sight, but is used behind it. When correctly aligned in height, you can see both the 5× magnified image and the red dot sight’s aiming point through the magnifier. If you need fast 1× aiming again, simply flip the MAVERICK to the side using the FTS mechanism. The included 10 mm Riser helps align the height of both optical devices.

Package contents

• Vector Optics MAVERICK 5×22 FTS Magnifier
• FTS RIS mount
• 10 mm Riser adapter
• Lens cap
• Cleaning cloth
• Allen keys
