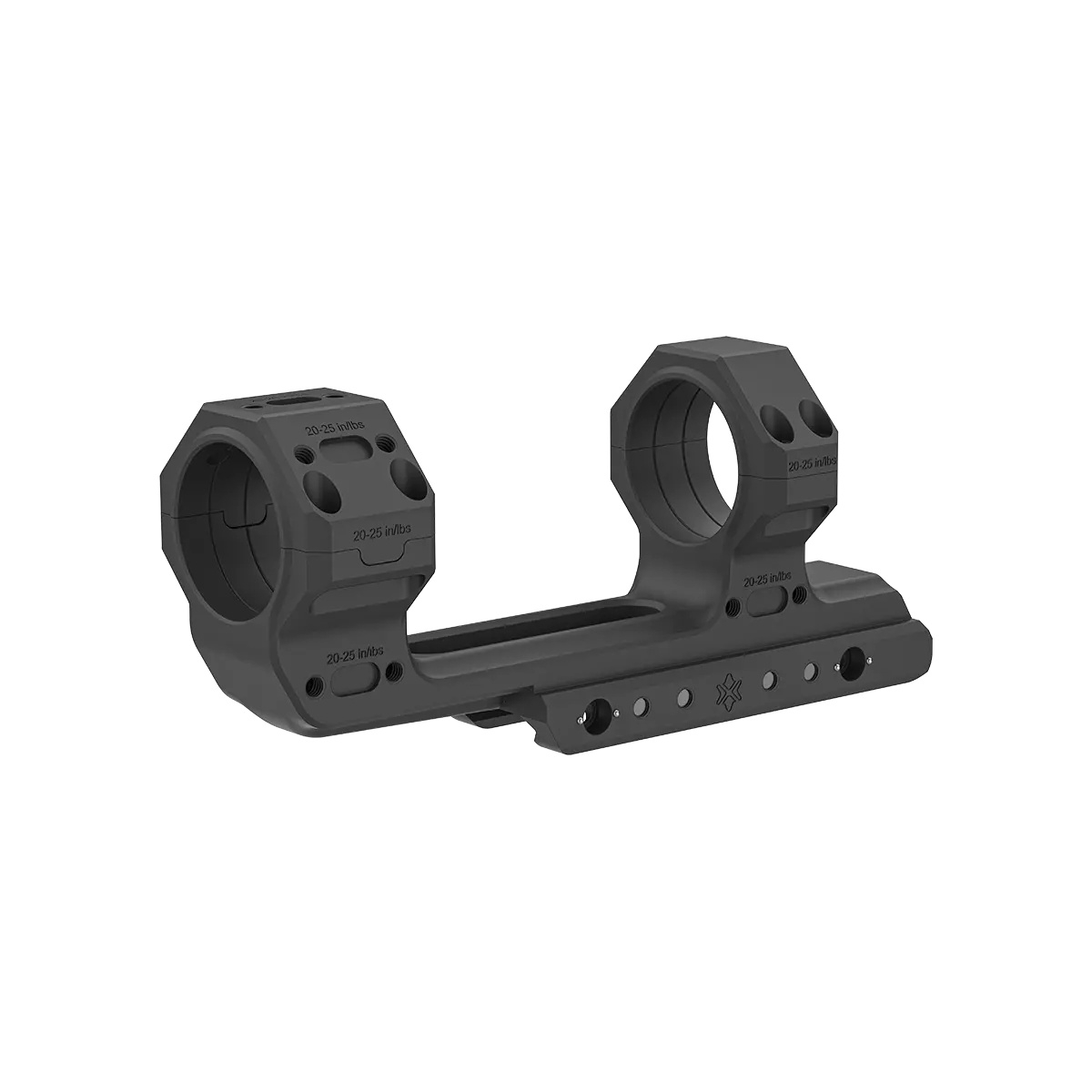

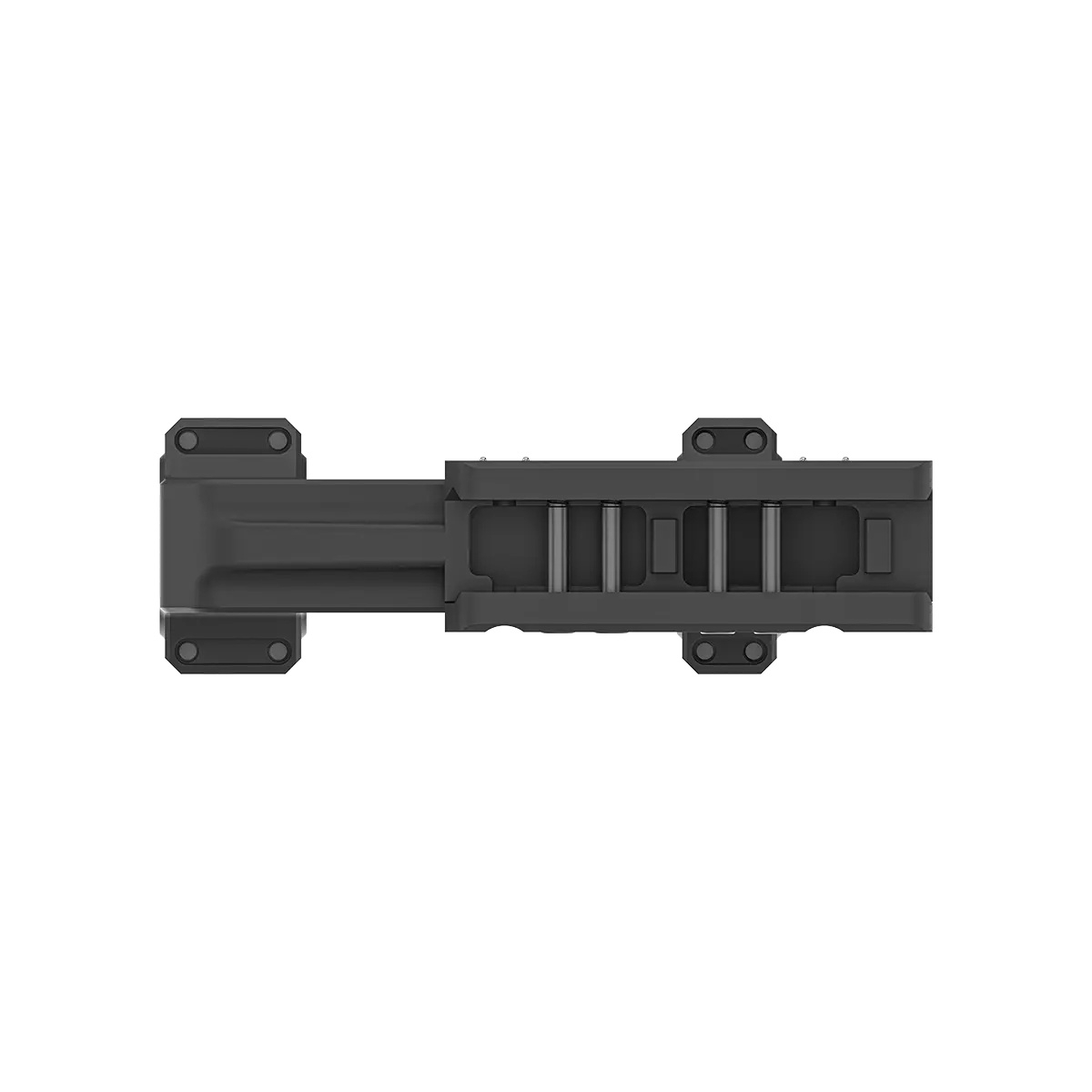

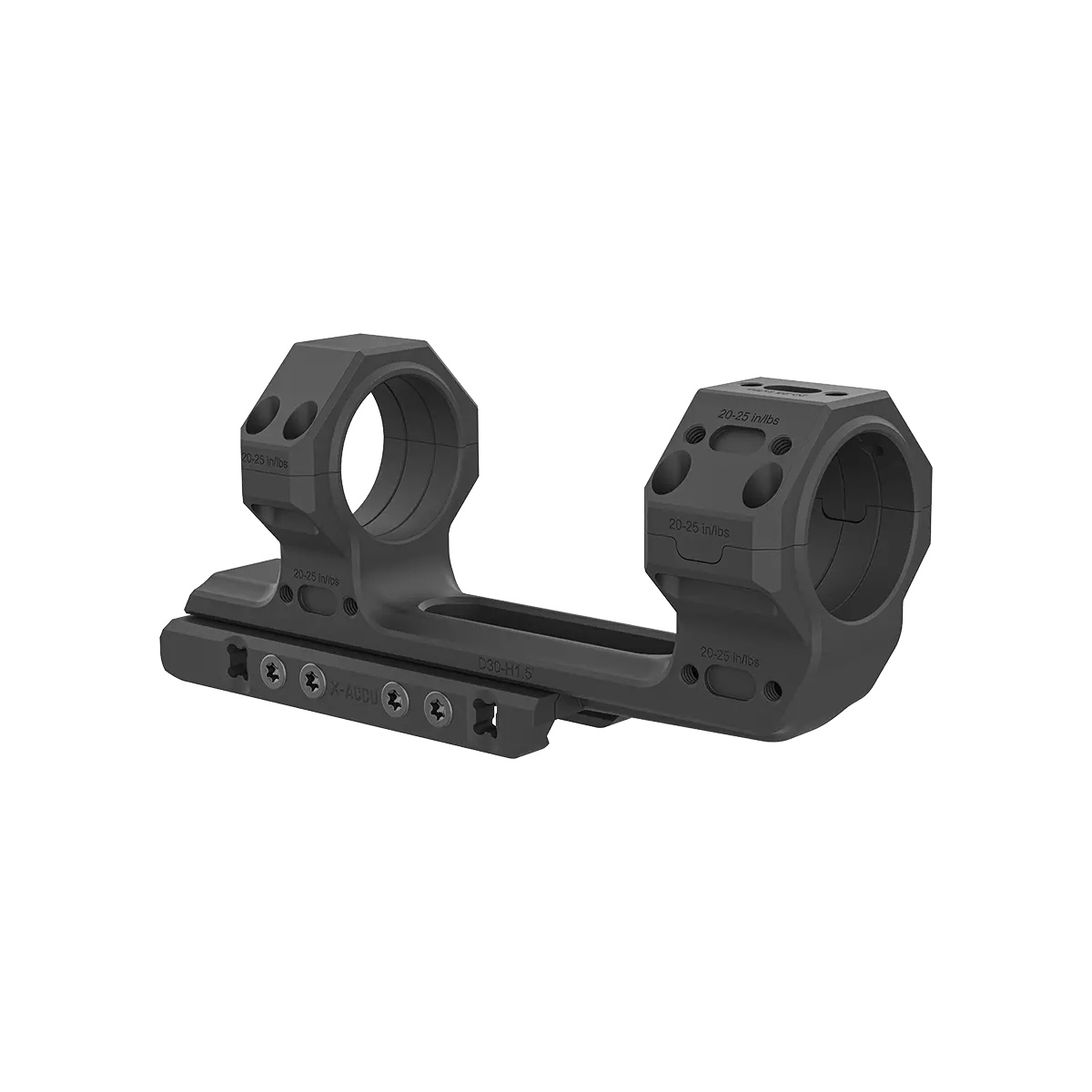

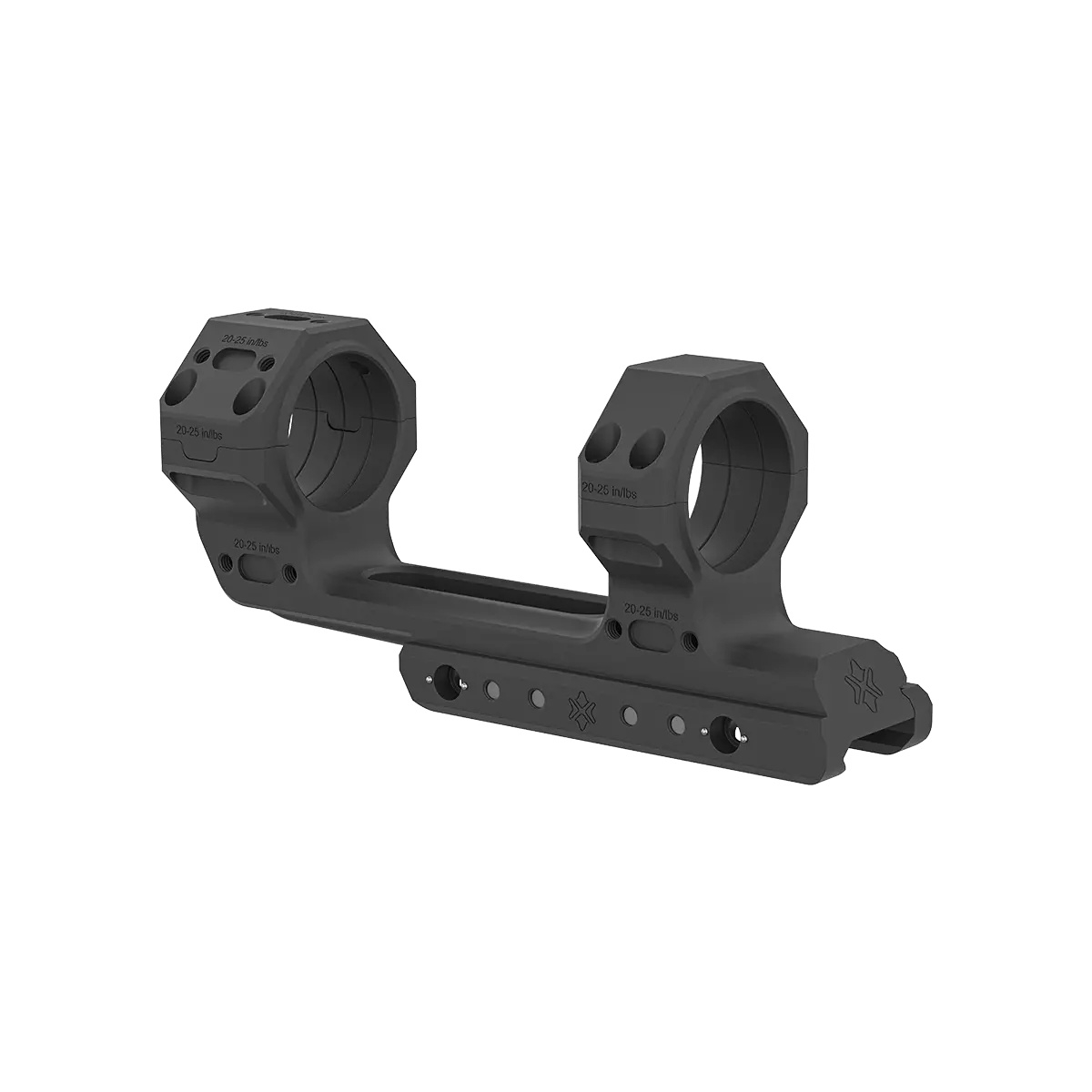

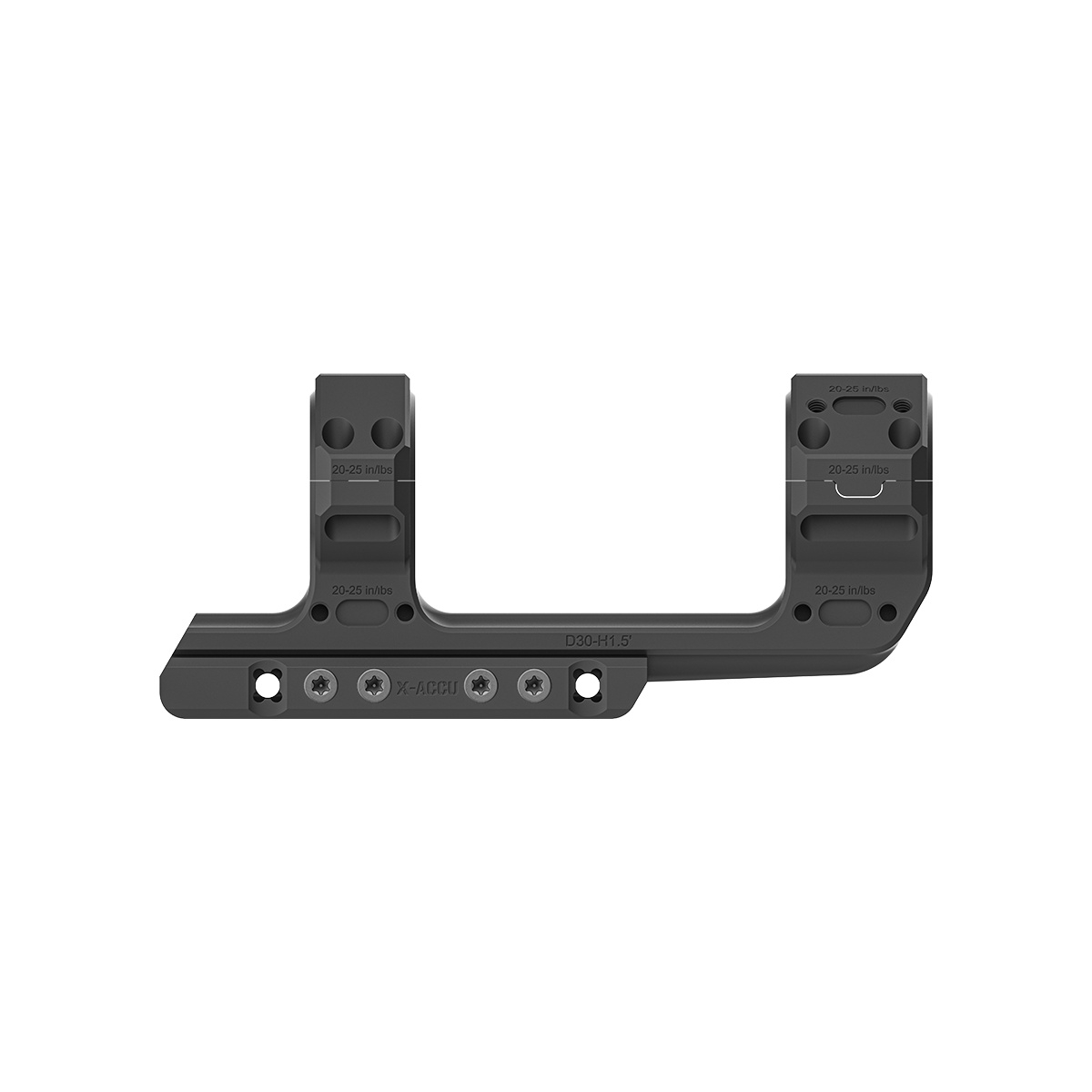

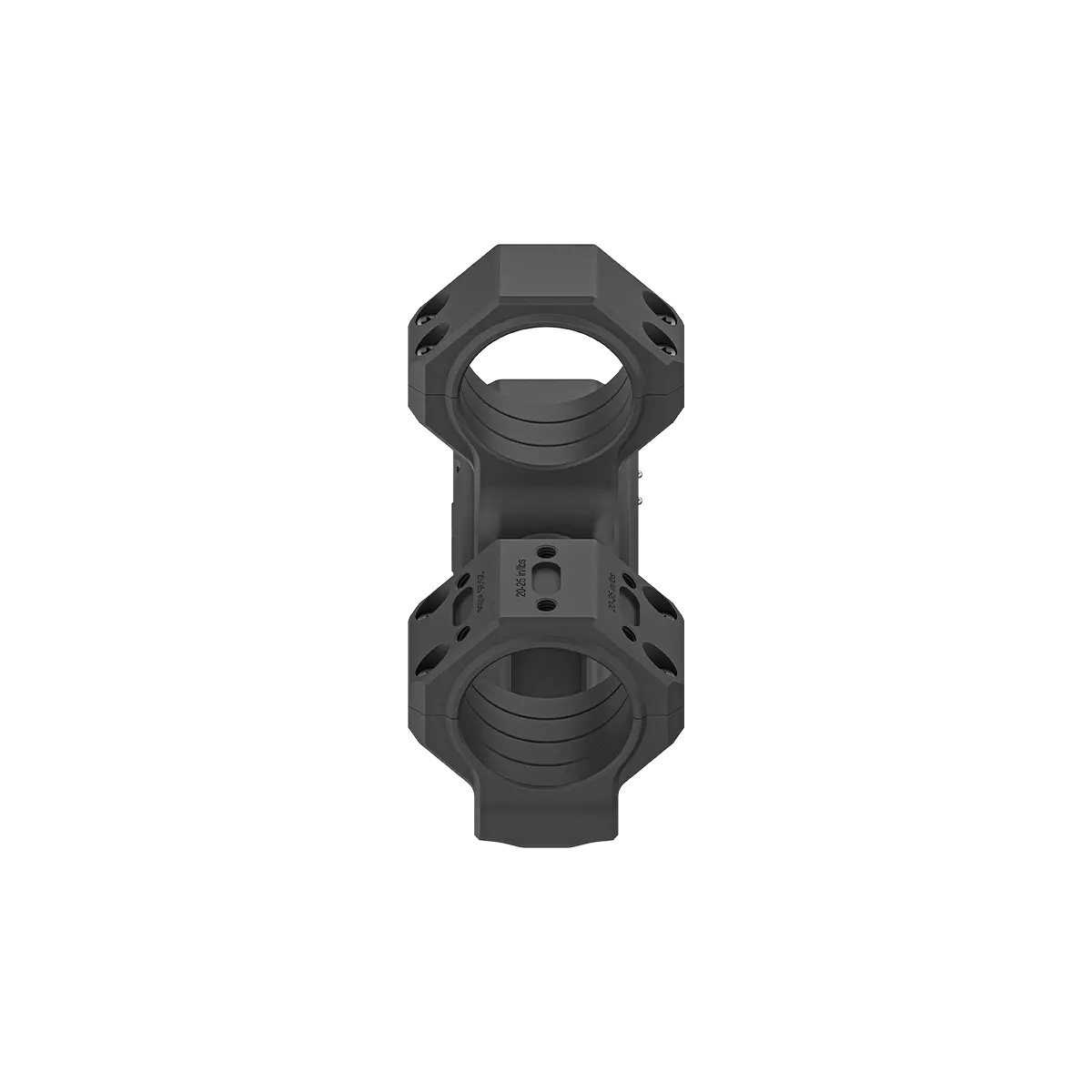

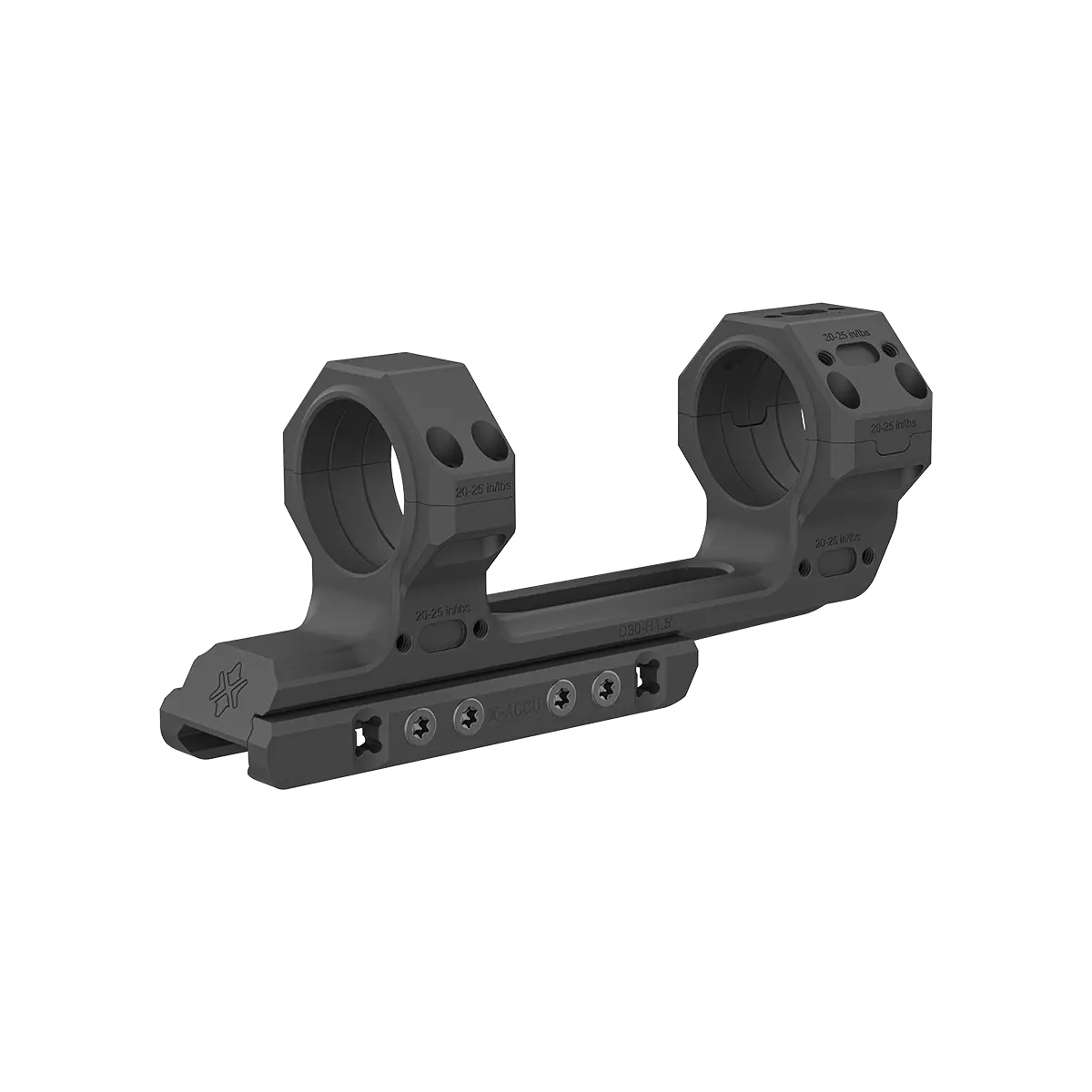

VO X-MOD / VAS(TM) 30mm One-Piece Extended RIS Mount (1.5″)

Technical specifications

• Manufacturer: Vector Optics
• Series: X-MOD / X-ACCU(TM)
• Type: One-piece extended cantilever mount
• Tube diameter: 30 mm
• Centre height: 38 mm / 1.50″ (from the bottom of the mount to the centre of the tube)
• Overall height: 65 mm
• Width: 48 mm
• Mounting: RIS
• Modular interface: X-MOD
• Compatible accessories: Vector Optics VAS(TM)
• Material: 7075-T6 aluminium alloy
• Manufacturing: 5-axis CNC machining
• Recoil resistance: Up to .50 BMG
• Recommended torque: 20–25 in/lbs (2.3–2.8 N·m)
• Finish: 20μm black anodising
• Colour: Black
• Weight: 217 g

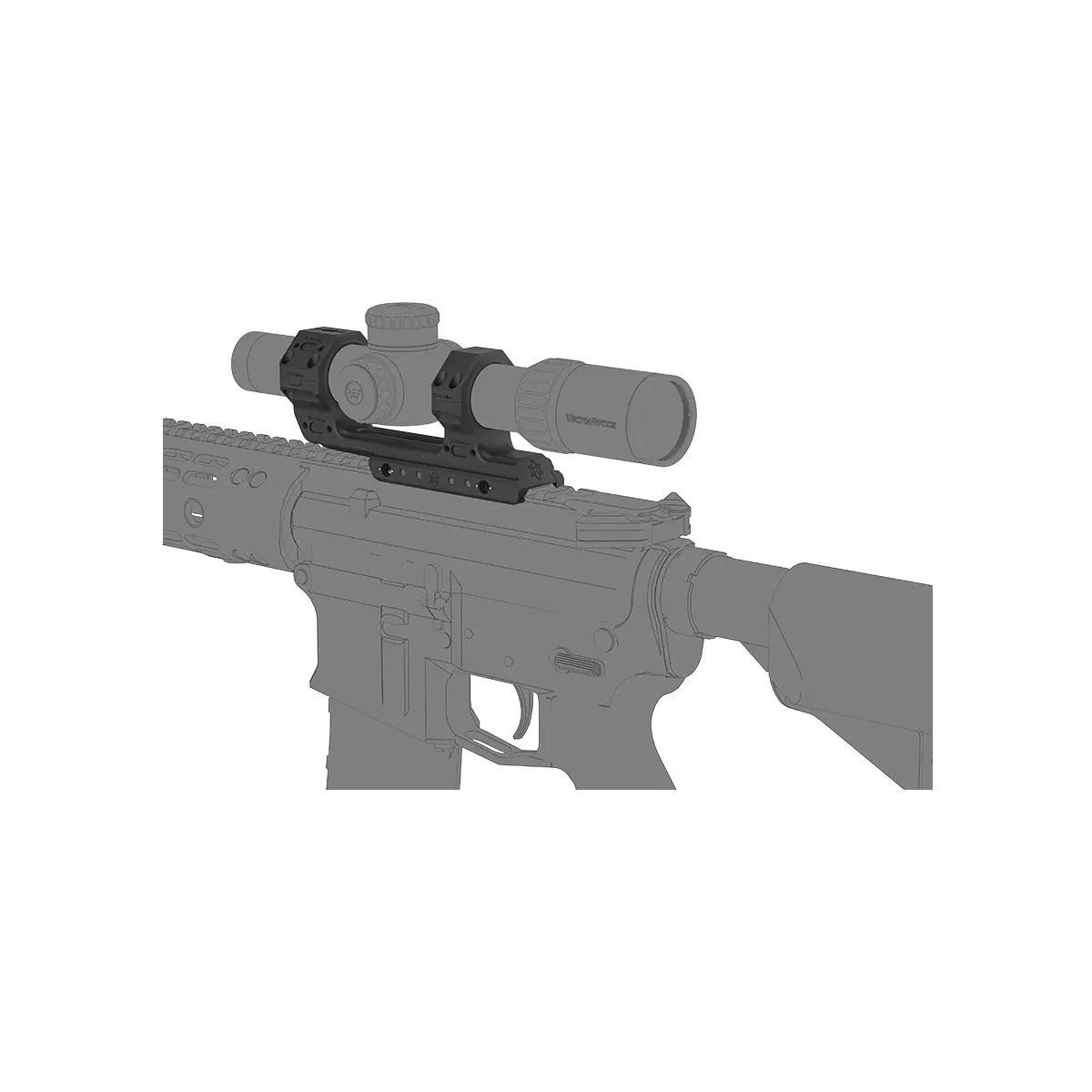

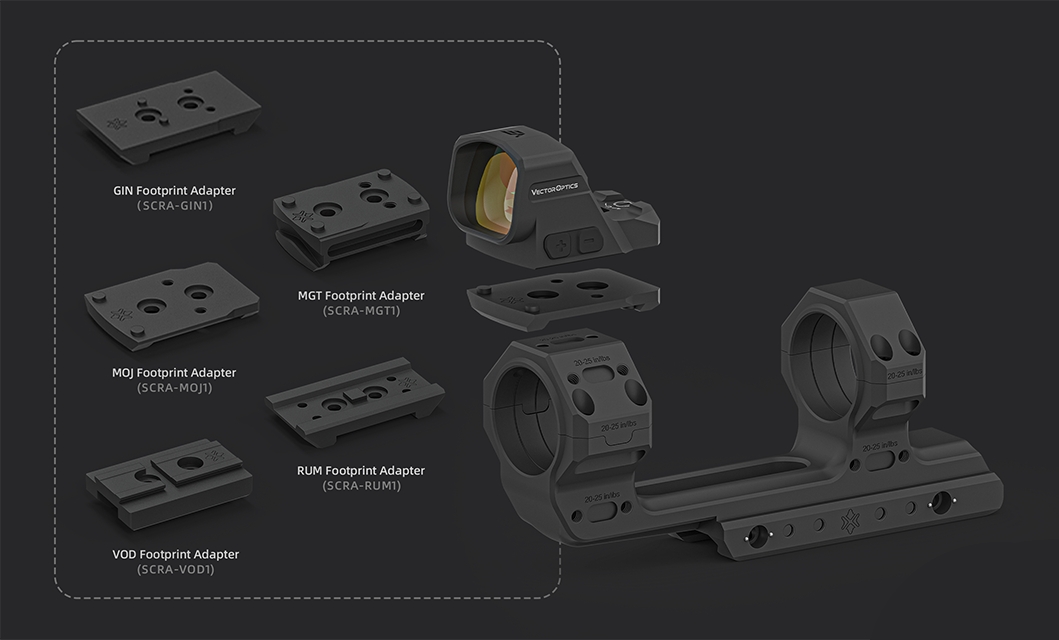

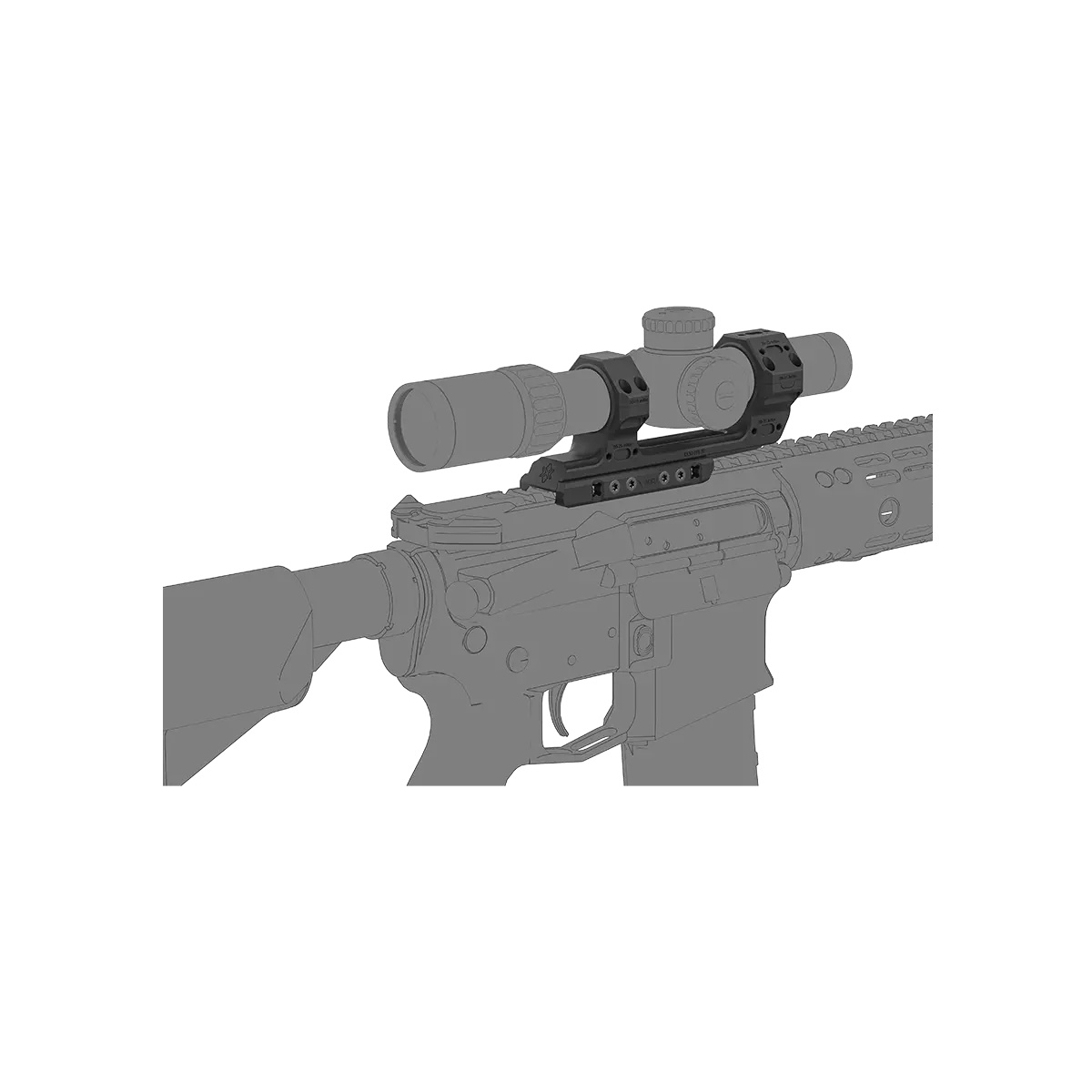

ANAREUS tip: When installing the rifle scope, use the forward offset of the mount to set the correct eye relief. Tighten the screws evenly and observe the manufacturer’s specified torque of 20–25 in/lbs (2.3–2.8 N·m). If you want to add a secondary red dot sight to your rifle, the X-MOD interface allows you to use compatible mounts and adapters from the Vector Optics VAS(TM) system.

Package contents

• Vector Optics 30 mm X-MOD 1.5″ one-piece extended RIS mount
• T15 Torx key
