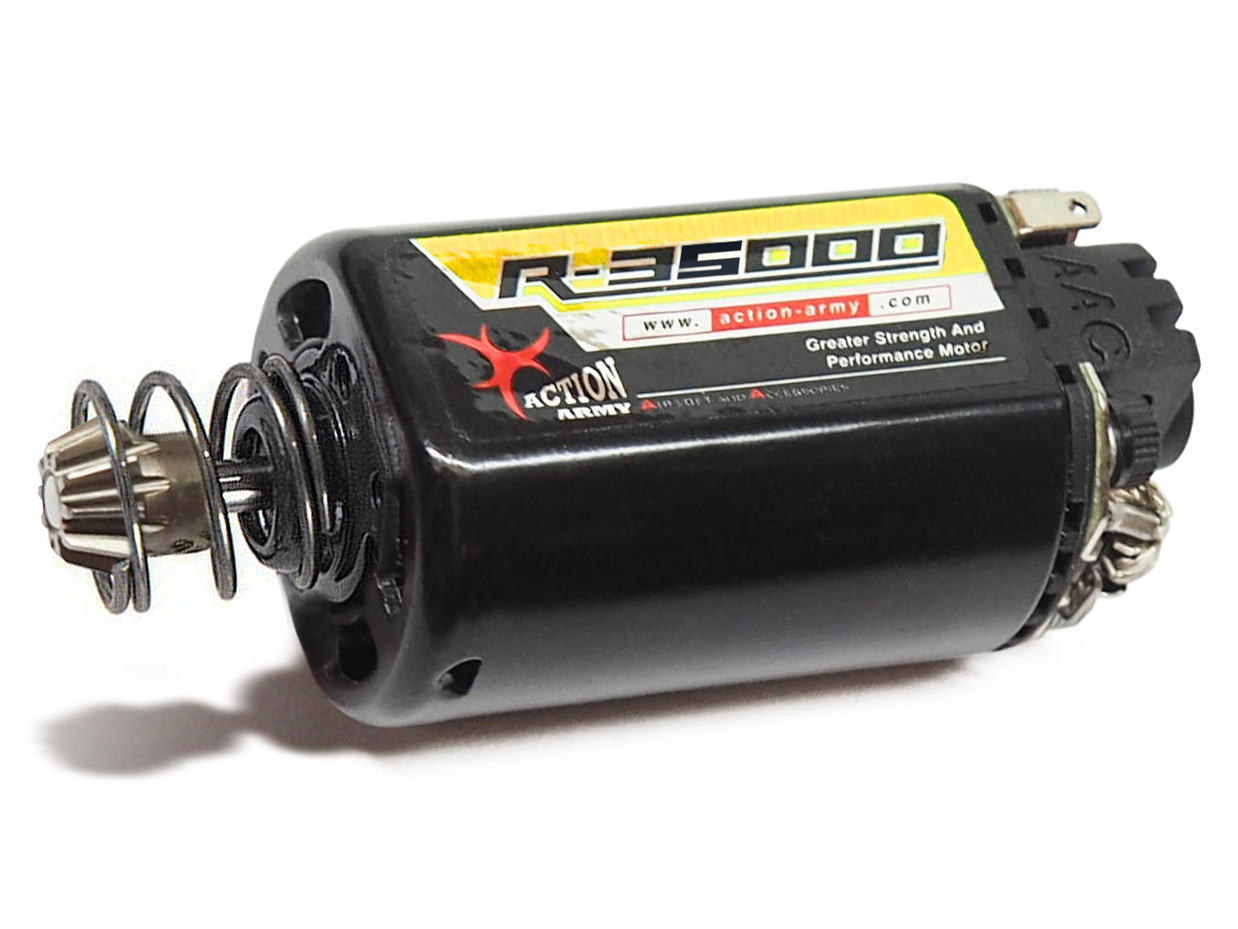

AA CNC Speed Motor INFINITY 35000R – Short Axis

CNC High-Speed Motor INFINITY 35000R by Action Army
The INFINITY 35000R motor from Action Army is designed for high RPM and maximum efficiency. Thanks to premium components and strict quality control, it provides smooth and stable operation even at high speeds. With 35,000 RPM at 8.4 V, it is ideal for high Rate of Fire (RoF) builds. The CNC-machined pinion gear with TM-compatible profile ensures precise engagement with most gear sets without risk of damage. The silicon steel rotor is finely balanced and wound to a high standard, delivering quiet operation and minimal heat. The motor housing is precisely crafted with vent holes for improved cooling. Equipped with ball bearing shaft stabilizers and heat-resistant N38 magnets, the motor also features enlarged silver-plated carbon brushes for reliable contact. All this results in an extremely smooth and cool-running motor under load.

Technical Specifications

Axle type: Short
RPM: 35,000 at 8.4 V
TPA: 15
Length: 70.3 mm (base to pinion tip)
Magnets: N38 neodymium
Rotor: CNC silicon steel
Pinion gear: CNC stainless steel (TM-spec)
Brushes: Enlarged, silver-plated
Bearings: Ball bearings for reduced friction

Package Contents

CNC high-speed motor INFINITY 35000R
