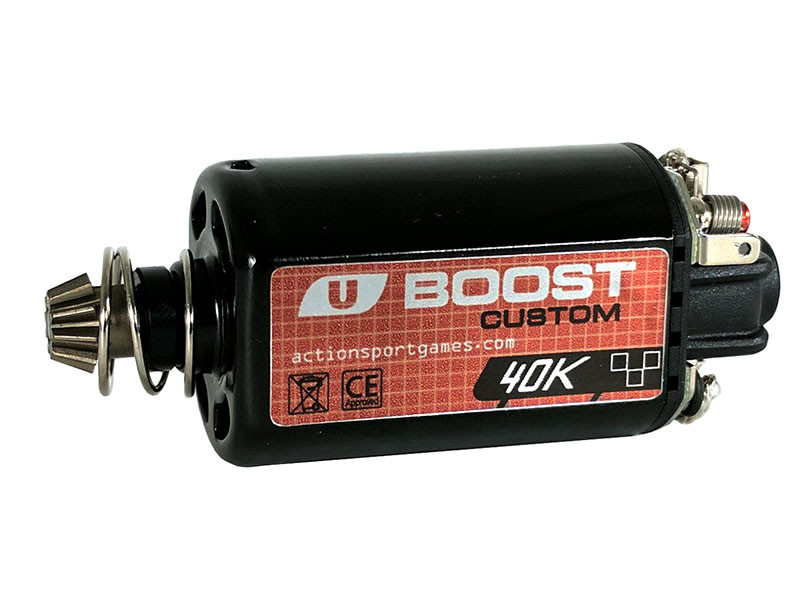

ASG ULTIMATE BOOST 40000 High-Speed Motor – Short Axis

AEG BOOST Upgrade Motor by ASG
The BOOST motor from ASG’s high-performance series features an enhanced design, heat-resistant magnets, and a precision CNC-machined pinion gear. It’s perfect for standard upgrades as well as advanced builds for competition-grade guns. The motor is equipped with ball bearings for improved stability and efficiency. It also features silver-plated wiring and larger carbon brushes for superior conductivity.The pinion gear is made of steel via CNC machining, and the motor uses a high-quality silicon steel core for optimal output.

Key Features

Consistent rotation speed – ideal for high-performance AEG builds.
Silver wiring and oversized brushes – low resistance and long service life.
CNC steel pinion gear and shaft – built for precision and durability.
Heat-resistant magnets – consistent performance under load.
Precision engineering – smooth operation and perfect balance.

BOOST Motor Use Recommendation Table

RPMMotor TypeRecommended SpringsGear Ratios

30,000 rpm
Torque
M120–M150
26:1 – 16:1

40,000 rpm
High Speed
M90–M120
13:1 – 18:1

Technical Specifications

Rotation Speed: 40,000 rpm
Axle Type: Short
Length: 90 mm
Weight: 164 g
Housing Material: Metal
End Plate Material: Nylon
Version: BOOST

Package Contents

ASG ULTIMATE BOOST Motor
