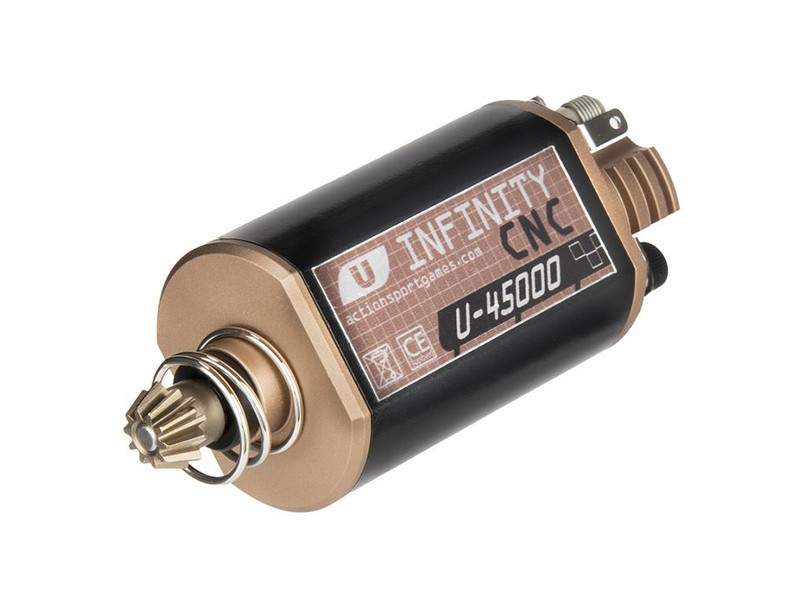

ASG ULTIMATE INFINITY CNC U-45000 Motor – Short Axis

INFINITY CNC Motor by ASG ULTIMATE
The INFINITY CNC motor is designed for maximum torque and reliable performance across spring tensions. It features a CNC-machined aluminum cap, stainless steel shaft, steel pinion gear, and a high-performance rotor with heat-resistant magnets. Thanks to carbon brushes and silver-plated wiring, it delivers excellent efficiency even under long-term use.Unlike the BOOST series, this model has a full CNC aluminum housing and base for optimal heat dissipation. Ball bearings ensure smooth shaft stabilization and operation. Naturally, it comes with a CNC steel pinion gear and wear-resistant stainless shaft.

Key Features

Aluminum endbell – CNC-milled for precision and cooling.
Stainless steel shaft – twist- and wear-resistant.
Silver-plated wiring – better conductivity and reliability.
Ball bearings – for smooth operation and shaft stability.
Carbon brushes – longer life and minimal sparking.
Strong magnets – high torque and stable rotation.

Motor Compatibility and Suggested Builds

RPMMotor TypeIdeal Spring StrengthGear Ratios

18,000 rpm
Extreme Torque
M170–M210
20:1–26.5:1

22,000 rpm
Super Torque
M140–M190
18.5:1–26.5:1

30,000 rpm
Torque
M120–M150
16:1–22:1

35,000 rpm
Torque / Speed
M110–M130
13:1–18:1

40,000 rpm
Speed
M90–M120
12:1–16.5:1

45,000 rpm
High Speed
M80–M110
10:1–13.5:1

Technical Specifications

RPM: 45,000
Axle Type: Short
Length: 73 mm
Weight: 166 g
Body Material: CNC-machined aluminum
End Plate Material: CNC-machined aluminum
Version: INFINITY CNC

Package Contents

ASG ULTIMATE INFINITY CNC Motor
