JeffTron AR MOSFET (V2 Gearbox)

AR MOSFET by JeffTron

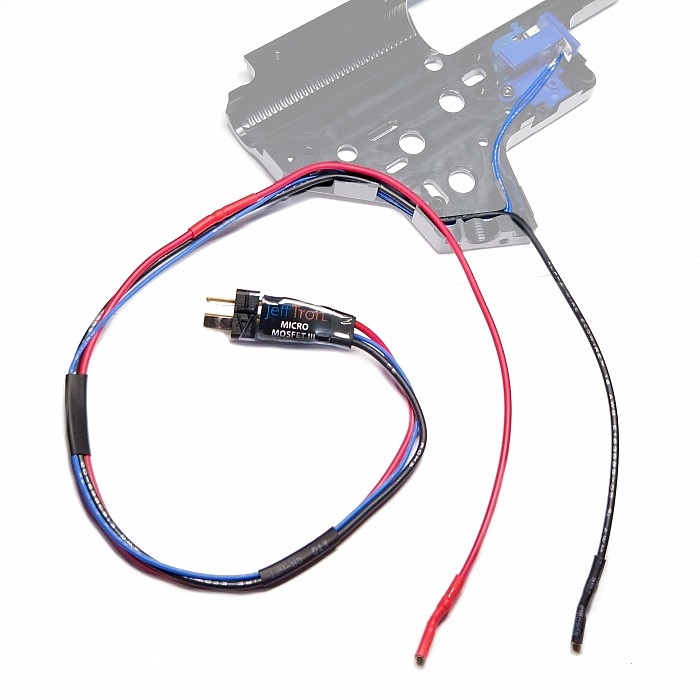

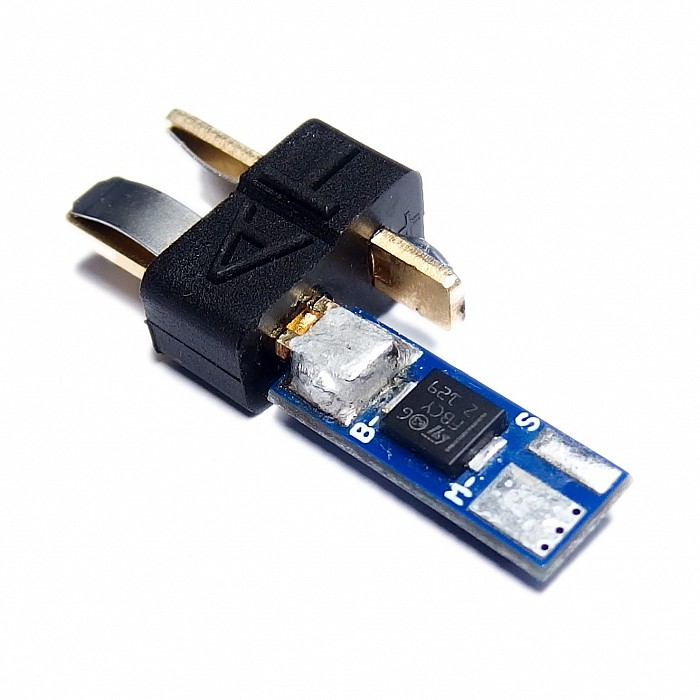

AR MOSFET by JeffTron is designed for airsoft AEG replicas with V2 gearboxes (especially M4 / AR15) and rear battery configuration. Thanks to the compact Micro MOSFET III integrated directly into the T-Dean connector, it ensures space-saving and easy installation. The wiring is prepared for direct connection to the original trigger contacts in the replica, requiring only basic soldering. This MOSFET is an electronic switch without active braking, replacing traditional mechanical switching via trigger contacts. This prevents contact burning, increases their lifespan, and also improves efficiency of the replica’s electrical circuit. It allows for higher rate of fire and longer battery runtime compared to standard wiring. It is particularly suitable for experienced technicians and service centers, as installation requires advanced knowledge of AEG replicas.

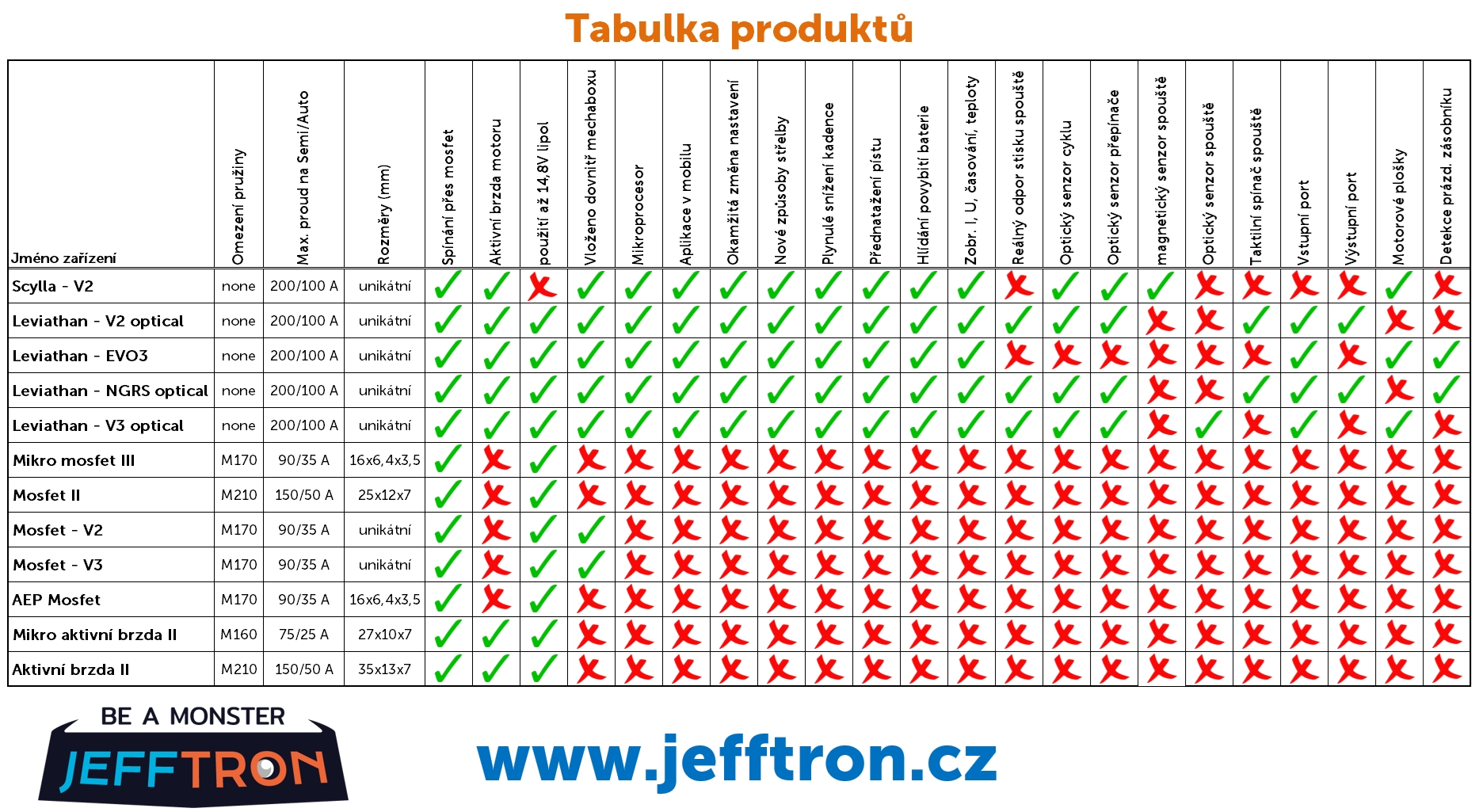

Types of JeffTron MOSFET Units

MOSFET II – External unit for springs up to M210.
Micro MOSFET III – Small external unit for springs up to M170.
AEP MOSFET – Smallest external unit for AEP pistols and SMGs.
MOSFET V2 – Internal V2 gearbox unit, space-saving, for springs up to M170.
MOSFET V3 – Internal V3 gearbox unit, space-saving, for springs up to M170.
AR MOSFET – Micro MOSFET III in T-Dean connector, for V2 trigger contacts, up to M170 spring.
AK MOSFET – Micro MOSFET III in T-Dean connector, for V3 trigger contacts, up to M170 spring.

Key Features

Boosts RoF and battery life: Compared to stock wiring.
Supports springs up to M170: Handles 90 A bursts and 35 A continuous fire (up to 30 seconds).
Battery compatibility: Supports up to 17 V, including Li-Po and Ni-xx.
Trigger contact protection: Prevents burning and increases lifespan.
Moisture resistance: Electronics coated for water protection.
Idle current draw: No power consumption when idle.

Technical Specifications

Designed for: AR15, M4, SR25, MP5, G3 (V2 gearbox with rear-wired battery)

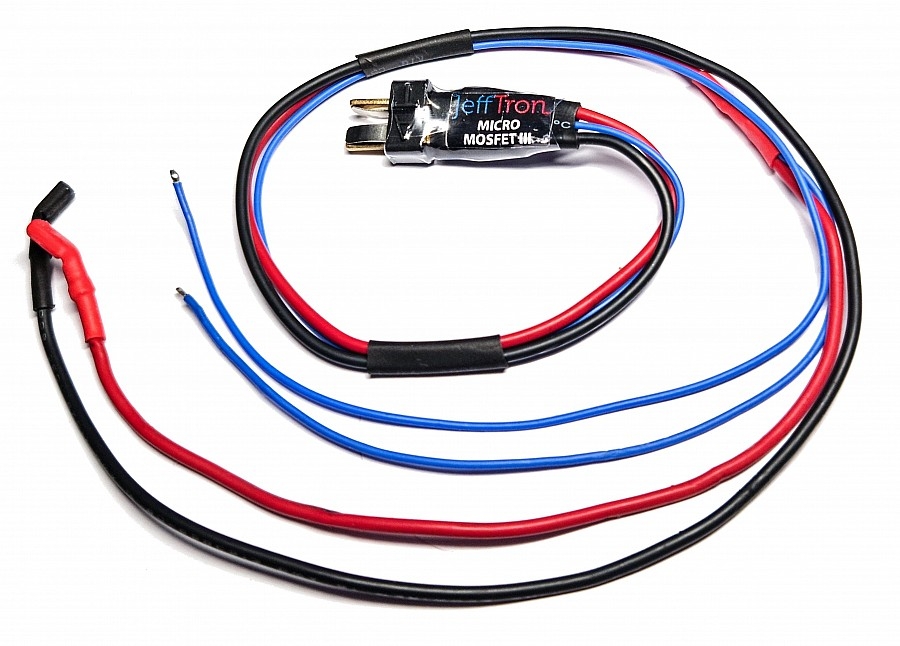

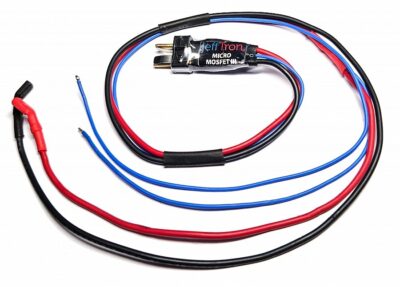

Wiring: Complete wiring set with PTFE insulation (1..
