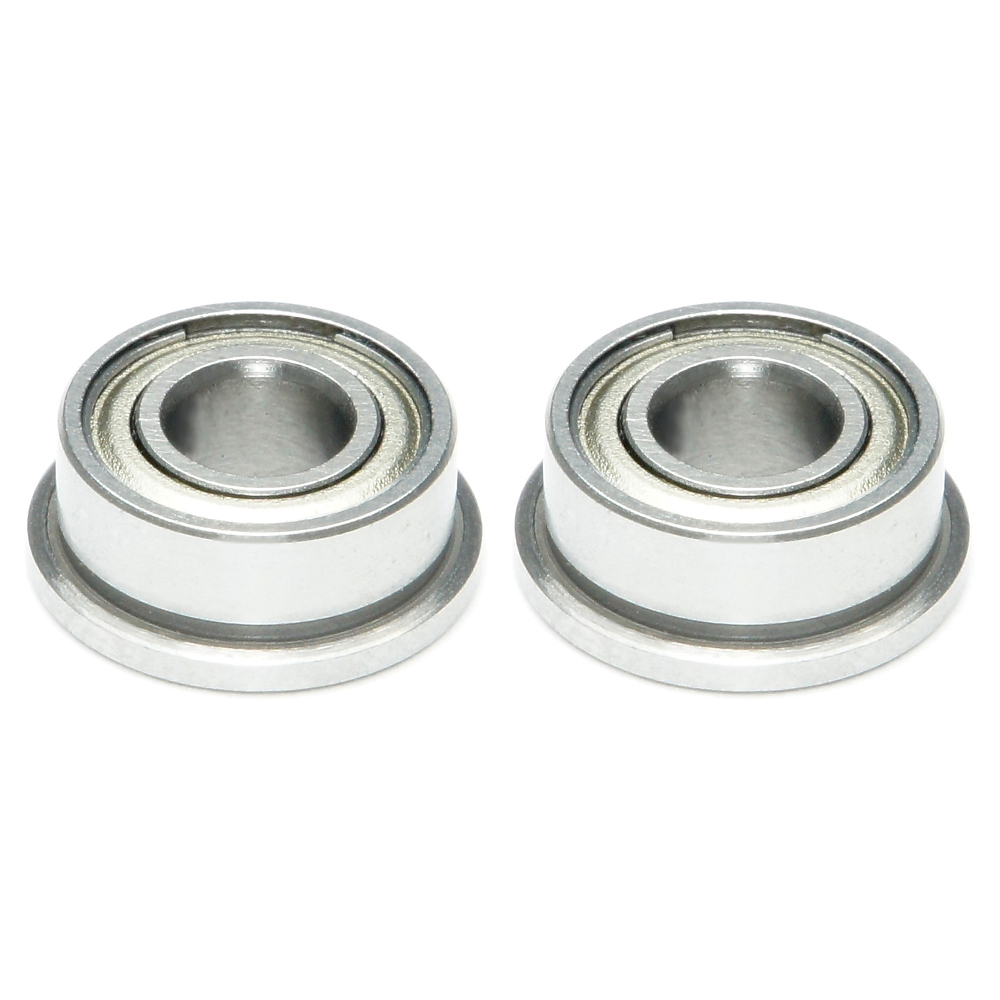

MAXX Flanged Steel Ball Bearing 4x9x4mm – 2PCS

<p>The flanged ball bearings have a flanged outer ring to facilitate location in housing axially and eliminate the need for housing shoulders.</p>
<p>Made of heat-treated Chrome steel.</p>
<div class=”img-responsive”><img src=”https://www.maxxmodel.com/image/catalog/flanged_bearing_dimension.jpg” border=”0″ /></div>
<p><strong>Specifications:</strong></p>
<ul>
<li>Bore Diameter: d=4mm </li>
<li>Outer Diameter: D=9mm</li>
<li>Width: B=4mm</li>
<li>Flange Diameter: Df=10.3mm</li>
<li><span>Flange Width: Bf=0.6mm</span></li>
<li>Inner Race: Di=5.2mm</li>
<li>Outer Race: Do=7.5mm</li>
<li>Radius: R=0.15mm</li>
<li>Dynamic Load Rating: C=49kgf</li>
<li>Static Load Rating: Co=22kgf</li>
<li>Bearing Type: Flanged Deep Groove Ball Bearing</li>
<li>Closure: Metal Shields</li>
<li>Material: Chrome Steel (SAE52100)</li>
</ul>
<p><strong>Features:</strong></p>
<ul>
<li>Heat-treated Chrome steel</li>
<li>Flanged outer ring</li>
<li>Reduced rotational friction</li>
<li>Radial loads support</li>
<li>Close tolerances</li>
</ul>
