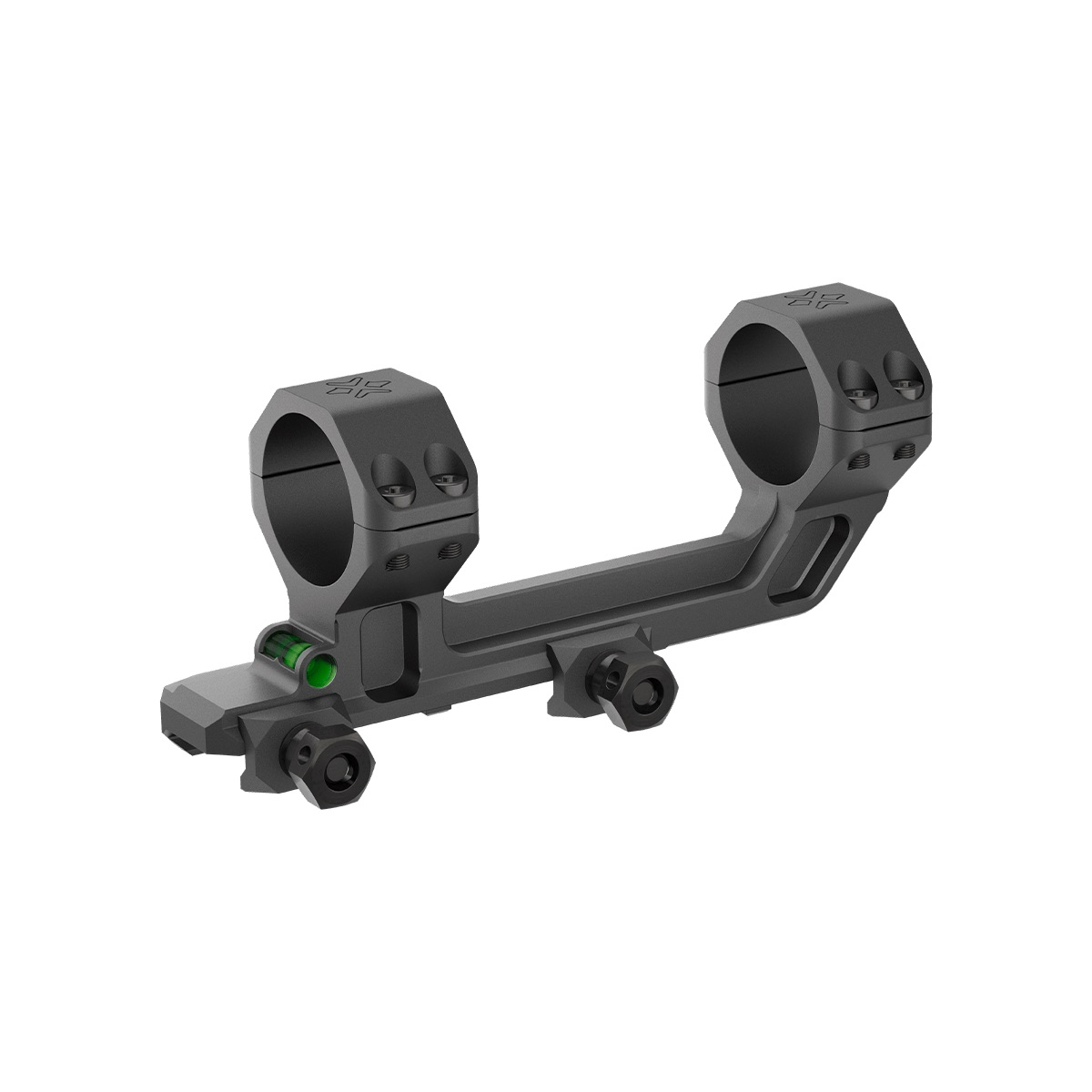

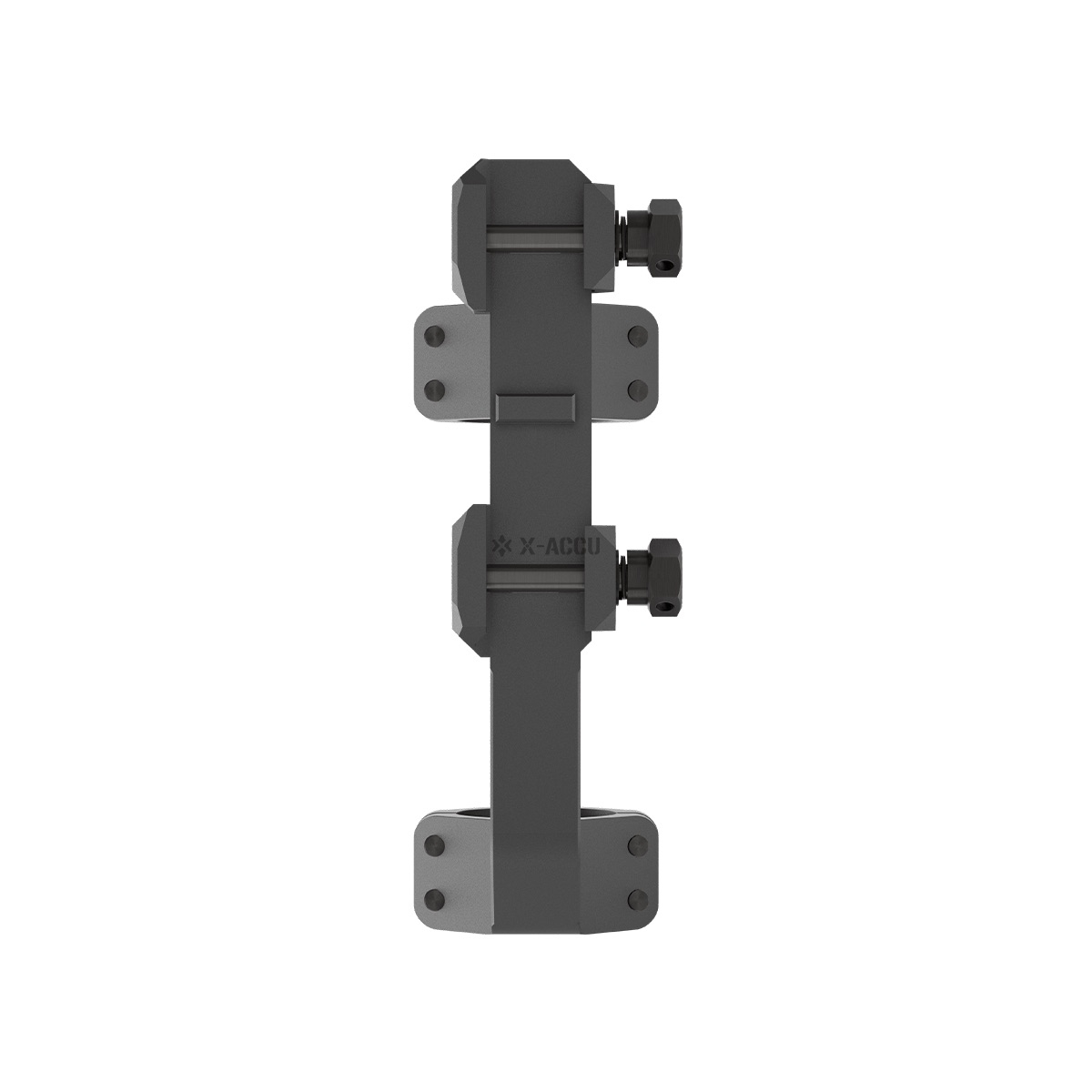

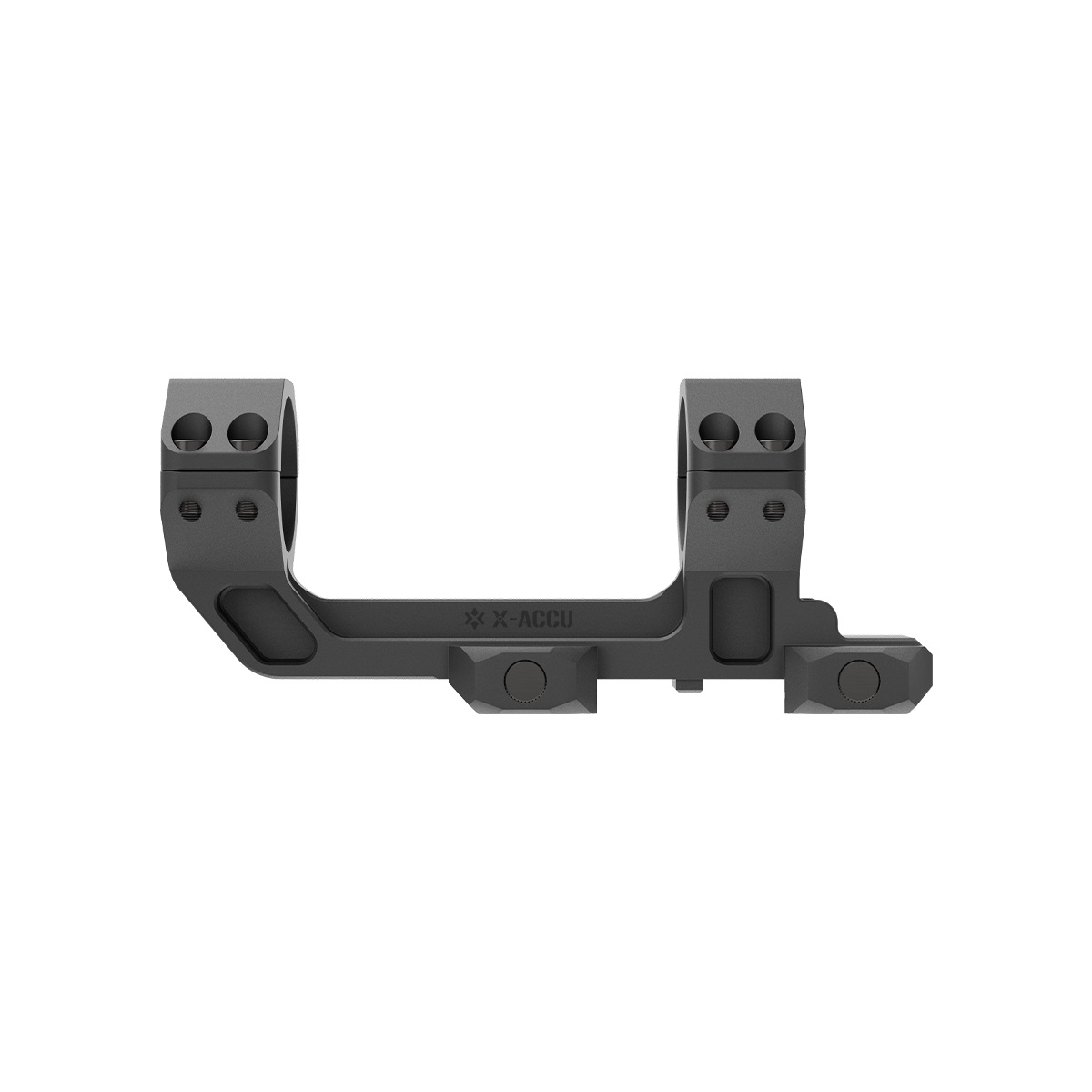

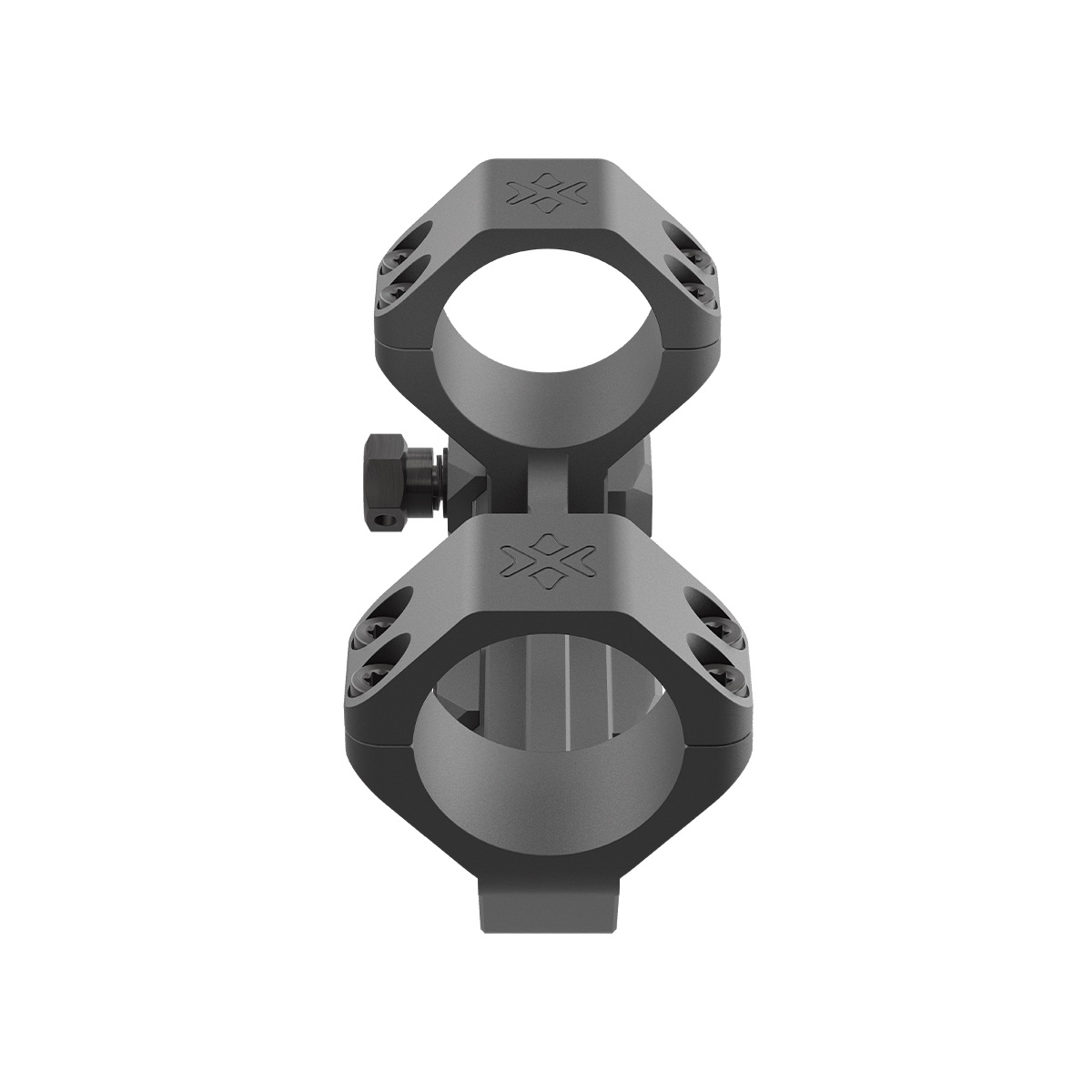

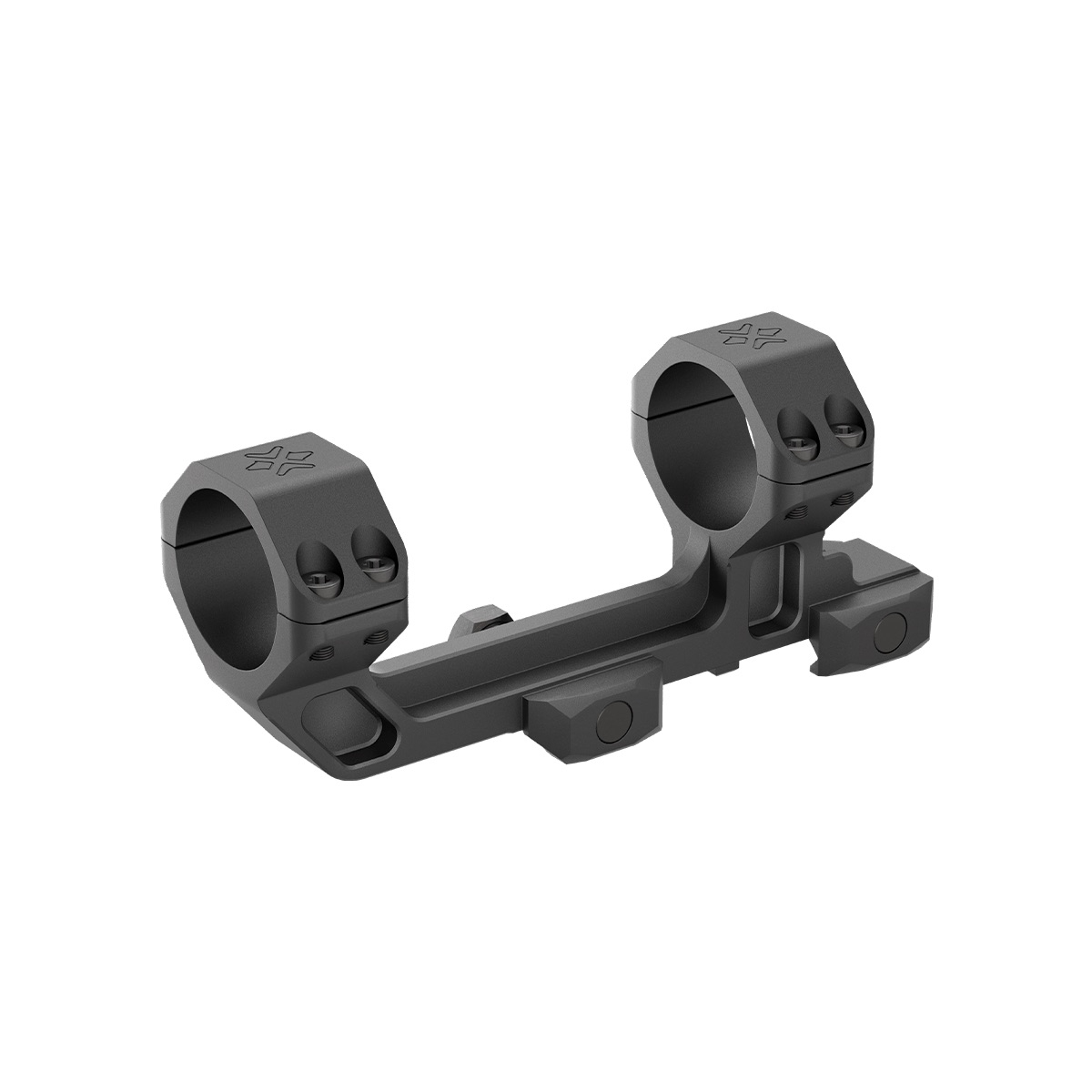

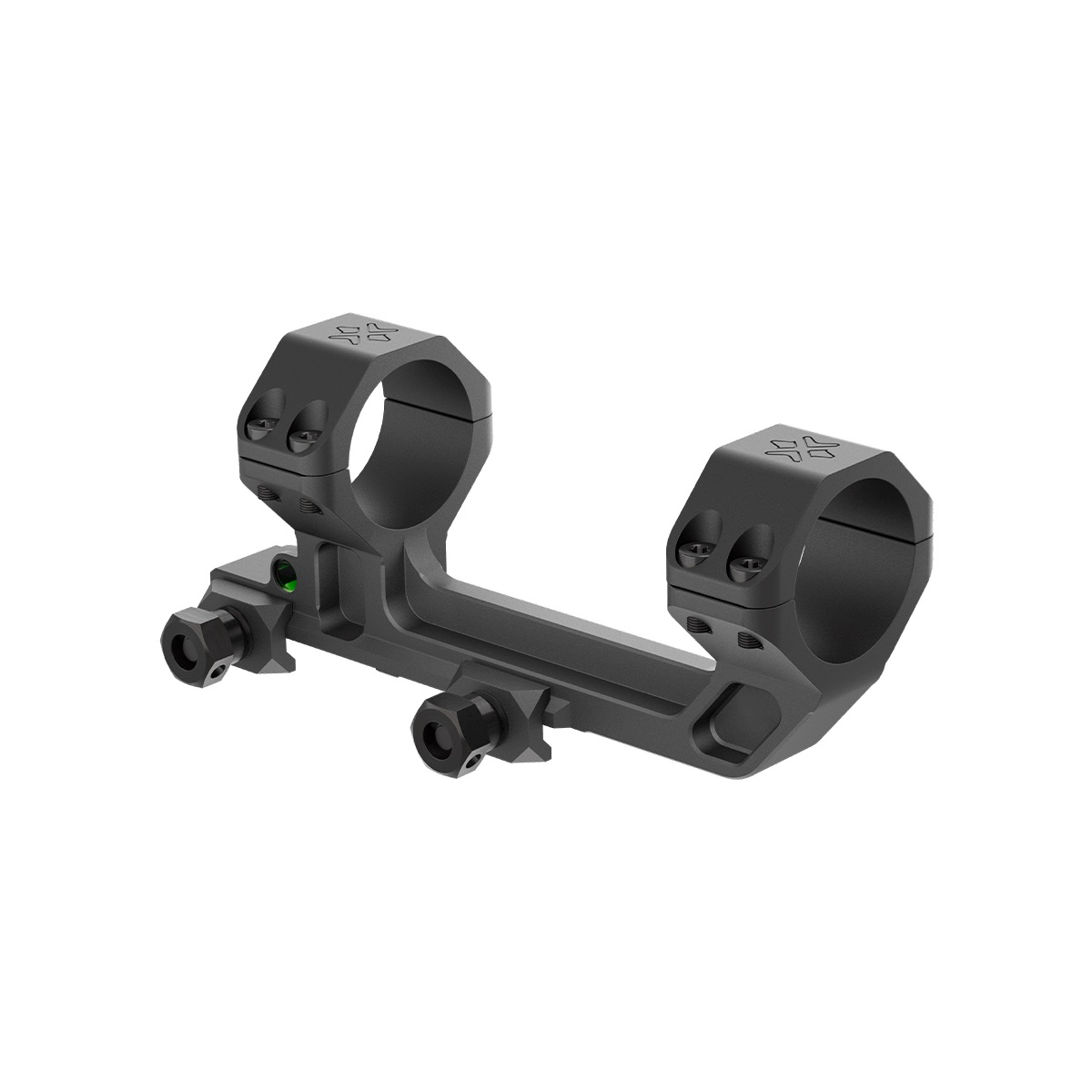

VO 30mm One-Piece RIS ACD CANTILEVER Scope Mount – Black

AR15 High RIS Mount for Vector Optics Rifle Scopes
Looking for a solid one-piece mount for your rifle scope? Need the correct height for a proper shooting position and maximum optic stability? This one-piece RIS mount ACD CANTILEVER from Vector Optics with a 30 mm diameter offers a 38 mm centre height, giving you a comfortable upright posture for accurate shooting with rifles. Thanks to the cantilever (offset) design, it also shifts the optic forward for a comfortable eye relief. The 6061-T6 aluminium CNC machining ensures low weight and high rigidity, while the four-screw system on each ring guarantees a secure hold even under heavy recoil. A built-in bubble level helps you eliminate unwanted rifle tilt that could affect your accuracy.

Key Features

Optimal height:Centre height 38 mm for a natural shooting position.
Cantilever design:Moves the scope forward for a more comfortable eye relief.
Secure hold:Four screws per ring ensure maximum optic stability.
Lightweight construction:CNC-machined 6061-T6 aluminium weighs only 152 g.
Compatibility:Designed for 30 mm tubes, mounts to a standard RIS rail.

Technical Specifications

Ring diameter: 30 mm
Overall height: 40 mm
Centre height: 38 mm (from base to tube centre)
Length: 138 mm
Material: 6061-T6 aluminium
Weight: 152 g
Mounting: RIS
Finish: Matte black

Package Contents

ACD CANTILEVER RIS mount for 30 mm rifle scopes
T15 Torx key
